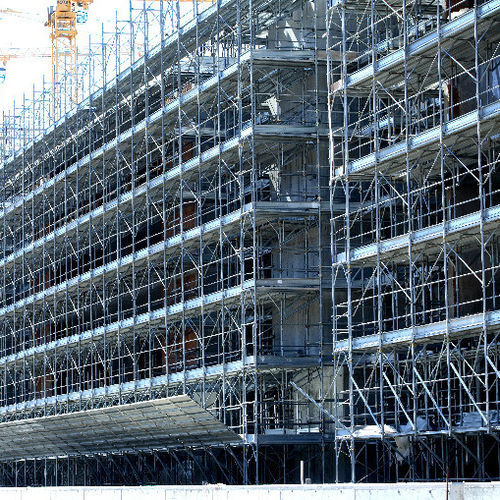

Galvanized steel scaffolding RP 105
high

galvanized steel scaffolding
galvanized steel scaffolding
galvanized steel scaffolding
galvanized steel scaffolding
galvanized steel scaffolding
galvanized steel scaffolding
galvanized steel scaffolding
Add to favorites
Compare this product

Characteristics

Material
galvanized steel
Options
high

Description

SYSTEM WITH BUSH-COUPLER RP 70 AND RP 105 FRAMES The scaffolding system in hot-dip galvanised steel with the widest range of accessories on the market. Supplied with bay lengths of 77/110 / 150 / 180 / 200 / 250/300 cm and a width of 105 cm (RP 105) and 70 cm (RP 70). PREPONT RAPIDO RP 70 AND RP 105 SCAFFOLDING System : Bush-coupler portal frame Material : S235JR, S355JR steel Tubes : Diameter 48.3 mm , Nominal thickness 2.9 mm Finish : Hot-dip galvanised coating in accordance with UNI EN ISO 1461 Welding : In accordance with regulations UNI EN ISO 15607 and UNI EN 1418 Ministerial authorisation : For loads of 300 N/m2, EN 12811 Certification : EN 12810-1 and EN 12811-1 RP 105 SYSTEM DIMENSIONS Width : 105 cm Bay length : 77/110/150 / 180/ 200 / 250 / 300 cm Height : 200 cm

Catalogs
