Precast beam TMCsteelwith symmetrical sectionlattice
Add to favorites
Compare this product
Characteristics
- Specifications
- precast
- Material
- steel
- Cross section
- with symmetrical section
- Longitudinal section
- lattice
- Applications
- for walkways
- Other characteristics
- large-span
Description

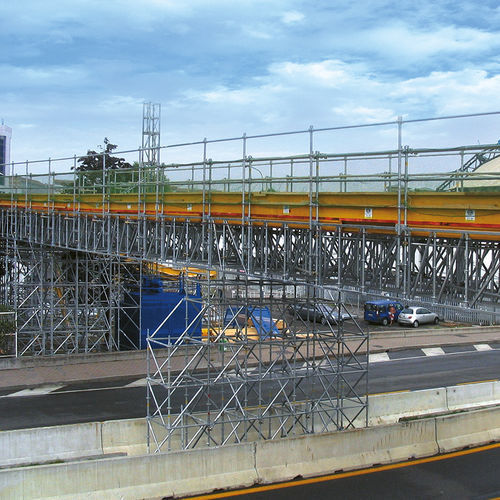

Modular beams for the creation of walkways, roofing and large-span beams. Reticular elements of 110 / 180 / 250 cm in size. Level or inclined support elements are used for positioning (12.5° for roofing).
Material - S235JR steel
Finish - Hot-dip galvanised coating in accordance with UNI EN ISO 1461
Welding - In accordance with regulations UNI EN ISO 15607 and UNI EN 1418
Size of the reticular element - 110 / 180 / 250 cm
