Galvanized steel scaffolding PRATICO H
high

galvanized steel scaffolding
galvanized steel scaffolding
galvanized steel scaffolding
galvanized steel scaffolding
galvanized steel scaffolding
galvanized steel scaffolding
galvanized steel scaffolding
galvanized steel scaffolding
galvanized steel scaffolding
Add to favorites
Compare this product


Characteristics

Material
galvanized steel
Options
high

Description

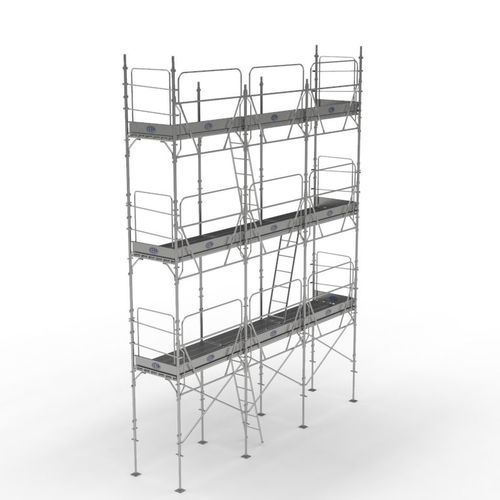

The scaffolding system in hot-dip galvanised steel with 2 basic elements (H-frame and guardrail frame) studied for increased safety and rapid assembly. Supplied with frame bay lengths of 150 / 180 cm and a width of 105 cm (PH 105) and 70 cm (PH 70). “H” bush-coupler frame S235JR, S355JR steel Diameter 48.3 mm Nominal thickness 2.9 mm Hot-dip galvanised coating in accordance with UNI EN ISO 1461 In accordance with regulations UNI EN ISO 15607 and UNI EN 1418 For loads of 300 N/m2 EN 12811 Certificate of conformity of the scaffolding to European regulations EN 12810-1 and EN 12811-1 Widtha - 70 cm Bay length - 150 / 180 cm Height - 200 cm Fields of application: PH 70 (width 70 cm) for maintenance in the residential and industrial sectors (Italy)

Catalogs
