Three-phase energy meter MCM2400

single-phasedigitalresidential

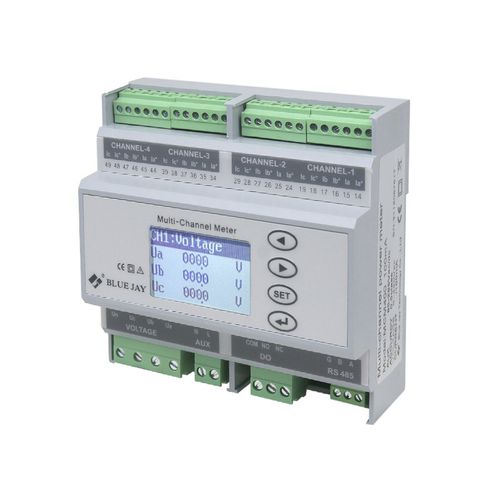

MCM2400 Multi Circuit Energy Meter is designed for commercial and residential power circuit sub-metering projects. This Multi-Circuit Energy Meter includes a 4-channel three-phase energy meter that is MCM2403 and a 12-channel single-phase energy meter that is MCM2401. Both of them have basic parameters, voltage harmonic distortion, current harmonic distortion measuring function, and 1*Digital outputs. The MCM2400 uses a 35mm standard din-rail installation and 6M width size, with a 1.6” dot matrix LCD interface so it can easily display all parameters on screen. The MCM2400 multi circuit energy meter performs real-time metering, measures energy consumption, and multi-tariff time-of-use (TOU), and monitors the power quality of multi-channel feeder loops, with an RS485 port that can send out collected value to the remote host. The dimensions of MCM2400 are a length of 105 mm, a height of 104 mm, and a width of 61.75 mm. 4 channels three-phase or 12 channels single phase circuit metering Measurement accuracy class 0.5 Current measuring 100mA or 1A, 50mA, 2.5mA optional 1.6’’ dot matrix LCD screen Universal series power supply (85-265VAC/DC) Provide 5 virtual alarm trigger With RS-485 Modbus/RTU Communications With 2-21st harmonic analysis With SPDT relay output for alarm output Accept customization design
