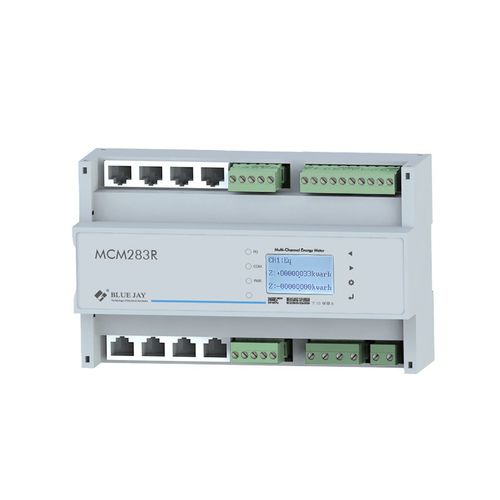

Multi-circuit energy meter MCM283R

three-phasesingle-phasewith LCD display

The MCM283R energy monitoring systems for commercial buildings is built with 8 main ciruits. It measures up to 8 three-phase circuits or 24 single-phase circuits for real-time metering. Different phase can be connected with each other to measuring different electrical circuits. In other words, it is ideal for commercial complexes billing on individual phase. In addition, this commercial energy monitoring system is built in RS485, RJ45 interface, you also can choose other interface such as WiFI, Ethernet, Zigbee, 4G, etc. The MCM283R commercial energy meter is equiped with 7.62mm voltage curret power terminals for simplible installation, and complies with the CATIII-300V safety voltage level and the 4kV withstand voltage capability. Compact terminals of RJ45 RS485 DI & Pulse Ouput The MCM283R is equiped with RJ45, RS485, 18 DI, Pulse output, etc. The RJ45 interface is a common network interface that can be used for large current or high-precision current transmission. This RJ45 current interface has a simple structure and is easy to connect. It makes the MCM283R commercial energy monitoring meter comparible with 100mA CT. Moreover, the DI can be used as pulse input port. High Accuracy Revenue meter for Commercial buildings The MCM283R business electricity meters measure and verfiy commerical bills with revenue-grade accuracy: ANSI C12.20 Class 0.5 & IEC62053-22 Class 0.5s. It is able to bill up to 8 individual three-phase clients or 24 single-phase clients or various combinations in between accuracily. The time-of-Use billing and logging energy chages per day to get accuracy data.
