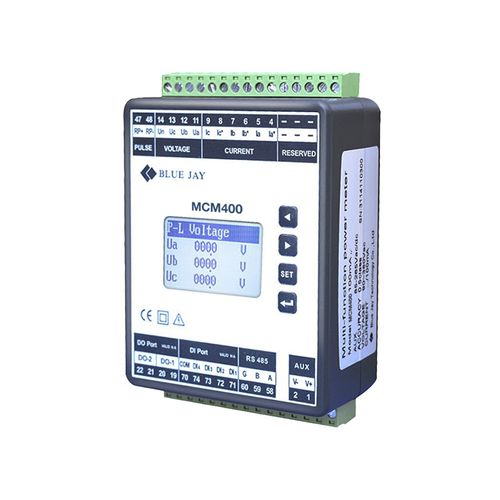

Three-phase energy meter MCM400

single-phasewith LCD displayresidential

MCM400 Multi Circuit Energy Monitor is designed for commercial and residential power circuit sub-metering projects such as Multi-Tenant Submetering. This multi-circuit sub-meter can integrate a 4pcs three-phase energy meter, or 12pcs single-phase energy meter. Metering operation processing by different MCUs provides high-accuracy billing performance. This multi channel energy monitor performs real-time metering, measures energy consumption, optional multi-tariff, and time-of-use (TOU), and monitors power quality functions. This three-phase energy meter has 4 four-channel circuits. It has an LCD screen and keypad for easy configuration. RS485 communication can send out collected value to the remote host. This MCM400 Multi-Channel Energy Monitor is ideal for multi-tenant or departmental metering applications within office towers, condominiums, apartment buildings, shopping centers, and other multi-user environments. Measuring basic electrical parameters, and optional advanced electrical parameters Optional measuring current and voltage unbalance, max demand, and voltage deviation, 2-31th current harmonic distortion Class 0.2 or class 0.5s basic parameter, class 0.5s for active energy and class 1.0 for reactive energy Optional 12 channels measurement signal access Optional Profibus communication Optional TOU record for each monitor channel 4 channels three phase metering Current measuring 1A or 5V, 333mV, 100mA Standard 35mm 4 module DIN rail mounting LCD screen Display OEM & ODM Service available
