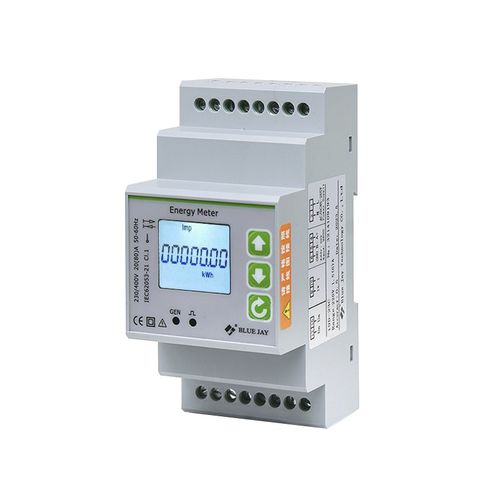

DIN rail energy meter DEM‑3M1C

single-phasewith LCD displayModbus

DEM-3M1C Single Phase Digital Energy Meter is a 3-module width DIN rail energy meter and uses external CT to expand the current to 999A. The DEM-3M1C CT energy meter is designed for single-phase energy measurement on a medium and low voltage system. The Single Phase Digital Energy Meter meets the related technical requirements of electronic meters in the IEC 62053-21, IEC62053-22, and IEC 62053-23 standards. The active energy accuracy is class 0.5s. The current and voltage accuracy is 0.2%. It features high precision, small size, and simple installation. Dimensions of the DEM-3M1C Single Phase Digital Energy Meter are as follows: width 50 mm, depth 63 mm, height 3.74 in (104 mm), and weight 170g. Measuring Voltage, Current, Frequency, Total power factor, Active power, Reactive power, Active energy, reactive energy, 4-quadrant energy 7 digits display U, I, P, Q, PF, kWh, and other energy consumption, Power measure (999999.99kWh) IP40 front panel protection and IP20 casing protection Standard 35mm din rail mounting, width 3M size The supply voltage can range from 100 to 230V Pulse output kWh/kvarh RS485 communication Modbus RTU External CT 1 A or 5 A
