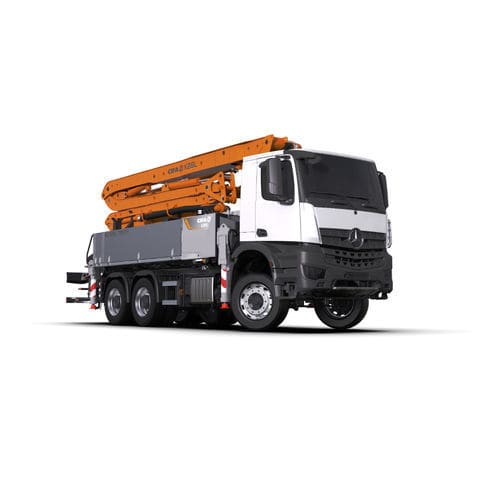

Mobile concrete pump K28L

truck-mounted

Overview
Equipped with a four-section 28 m boom, the K28L is designed for medium and confined urban job sites. Mountable on compact 3-axle trucks with a short wheelbase, it is suited to renewal works, mid-size pavements, city roads and service structures. The closed-loop pumping unit HP1608EC delivers up to 160 m3/h at 80 bar.

Series

• STEELTECH

Details

• Pumping unit: HP1608EC (closed loop)
• Control system: smartronic
• Boom length: 28 m
• Boom sections: 4
• Weight limit: 26 t

Applications

• Medium or covered working sites
• Urban centres; mountable on compact 3-axle trucks with short wheelbase
• Renewal works, mid-size pavements, city roads and service structures

Technical specifications

• Model: K28L
• Series: STEELTECH
• Boom length: 28 m
• Boom sections: 4
• Weight limit: 26 t
• Pumping unit: HP1608EC (closed loop)
• Control system: smartronic
• Maximum delivery: up to 160 m3/h
• Maximum pressure: 80 bar
• Suitable for: compact 3-axle trucks with short wheelbase; medium and urban job sites
