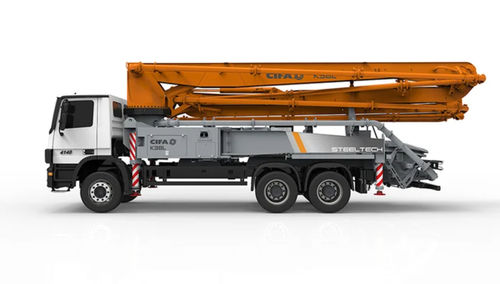

Truck-mounted concrete pump K38L

Overview
Compact truck-mounted concrete pump designed for small and medium construction sites where manoeuvrability and contained stabilisation are required. Fitted on 6x4 chassis with 4750 mm wheelbase, the K38L features a 4-section Z-folding boom reaching 38 m. Available with HP1608EC or HP1606H pumping units in open or closed loop configurations and managed via the easytronic system.

Highlights

• Compact layout for 6x4 4750 mm wheelbase trucks for improved site access
• Contained stabilisation dimensions for easy placement in confined areas
• 4-section Z-folding boom providing flexible reach and positioning
• Choice of open loop or closed loop pumping unit for tailored performance

Technical details provided on page

• Pumping unit: HP1608EC, HP1606H
• Management system: easytronic
• Series: STEELTECH
• Boom length: 38 m
• Boom sections: 4
• Weight limit (carrier): 26 t

Applications

• Small and medium construction sites with limited access
• Bridge works and deep pours requiring sustained delivery
• Car park slabs, basements and confined urban sites

Technical specifications

• Model: K38L
• Series: STEELTECH
• Boom length: 38 m
• Boom configuration: 4 sections, Z-folding
• Pumping unit options: HP1608EC, HP1606H (open loop or closed loop)
• Control/management system: easytronic
• Typical truck mounting: compact layout for 6x4 4750 mm wheelbase chassis
• Weight limit (carrier): 26 t
• Designed for effective stabilisation and manoeuvrability in confined job sites
