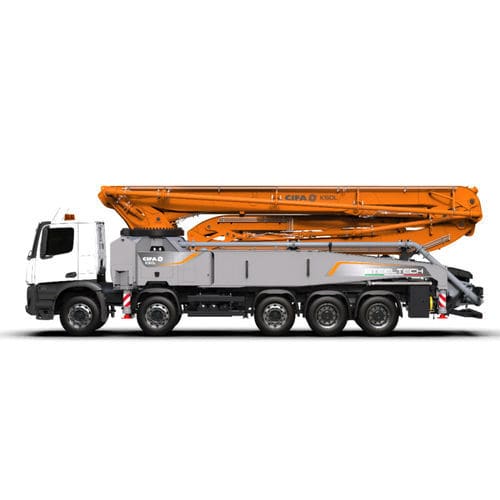

Truck-mounted concrete pump K50L

Overview
The K50L is a CIFA truck-mounted concrete pump with a 50 m boom, engineered for medium to large jobsites. It features a lightweight yet robust boom design that provides full vertical and horizontal reach. Available with open-loop or closed-loop pumping units, the machine delivers pumping capacity up to 180 m3/h and can be mounted on 8x4 or 10x4 trucks for optimal manoeuvrability and weight distribution.

Key features

• Series: STEELTECH
• Boom length: 50 m
• 5 sections boom with RZ folding
• Front double telescopic outriggers
• Contained stabilisation dimensions for easy placement on varied jobsites
• Truck mounting options: 8x4 (wheelbase 6350 mm) or 10x4 (wheelbase 4775 mm)
• Robust yet lightweight structure enabling full vertical and horizontal reach
• Pumping capacity: up to 180 m3/h (open-loop or closed-loop units)

Equipment / Technical items

• Pumping unit options: HP1606H, HP1608EC, HP1808ECX
• Management system: easytronic

Highlights
5-section boom with RZ folding ensures compact transport and extended reach. Front double telescopic outriggers and contained stabilisation dimensions allow quick and flexible set-up on constrained or irregular sites. Mounting on 8x4 (WB 6350 mm) or 10x4 (WB 4775 mm) chassis optimises manoeuvrability and weight balancing.

Technical specifications

• Model: K50L
• Series: STEELTECH
• Boom length: 50 m
• Boom sections: 5
• Folding type: RZ folding
• Maximum allowable vehicle weight: 40 t
• Pumping unit options: HP1606H, HP1608EC, HP1808ECX
• Management system: easytronic
• Maximum pumping capacity: up to 180 m3/h
• Truck mounting options: 8x4 (wheelbase 6350 mm) or 10x4 (wheelbase 4775 mm)
• Outriggers: front double telescopic outriggers
• Designed for easy placement and manoeuvrability on varied jobsites
