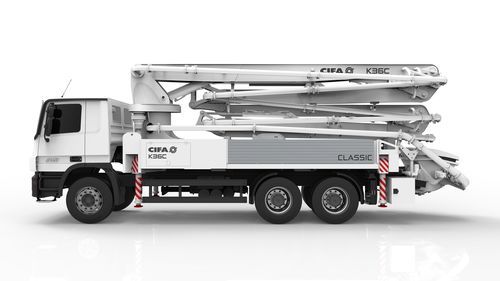

Truck-mounted concrete pump K36C

Overview
Classic Line 36-metre truck-mounted concrete pump designed for medium-to-large construction projects. Compact 5-section Z-fold boom provides operational flexibility and a 36 m reach.

Highlights

• 5-section boom with Z unfolding design for maximum manoeuvrability and operational efficiency in all working conditions.
• Open-circuit pumping unit delivering up to 170 m³/h at 80 bar.
• Standard equipment: LED lighting package, automatic lubrication system and aluminium hopper cover.
• Equipped with a CIFA-designed control system; optional LSC (Light Stability Control) available for active stabilised area management.

Additional product data

• Series: Classic
• Boom length: 36 m
• Boom sections: 5
• Weight limit: 28 t
• Pumping unit: 1708

Technical specifications

• Type: truck-mounted concrete pump
• Boom configuration: 5 sections, Z unfolding
• Boom reach: 36 m
• Pump type: open-circuit pumping unit
• Maximum theoretical output: 170 m³/h
• Maximum pressure: 80 bar
• Standard equipment: LED lighting package, automatic lubrication system, aluminium hopper cover
• Control: CIFA-designed control system; optional LSC (Light Stability Control)
• Weight limit (chassis/installation): 28 t
• Pumping unit model/identifier: 1708
