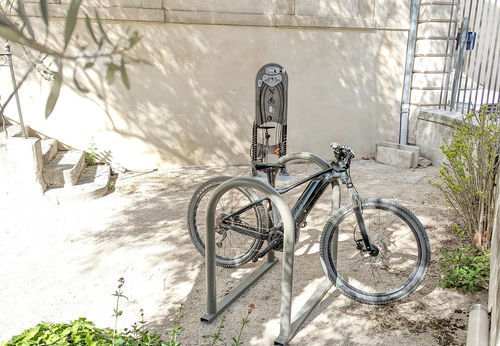

Floor-mounted bike rack R-UNO

secureoutdoorgalvanised steel

Overview
R-Uno is a hoop rack for bicycle parking designed to facilitate locking and securing all types of bicycles. The rack is made of support hoops mounted on two rails, forming modular units from two hoops with no limit on the number of modules. Freestanding, it can be fixed to all types of surfaces: soil, asphalt, paved slabs or concrete.

Secured
Quality steel suitable for outdoor environments to provide secure bicycle parking and stable support for bicycles.

Ergonomic
Simple and aesthetic to use, suitable for all cyclists and all types of bicycles.

Installation
To ensure optimal and durable fixing, it is recommended to anchor this equipment to a cemented, concrete or asphalted surface.

Dimensions
Height above ground: 80 cm
Width: 56 cm
Spacing between hoops: 84 cm
Diameter: 60 mm
Thickness: 2.5 mm

After-sales service and warranty

• Repairs can be carried out either by the facility manager with shipment of spare parts, or by on-site intervention at the manager's premises.
• From the date of delivery: the structure is covered by a 5-year warranty (excluding damage due to vandalism, non-compliant installation or impact to the paint).

Color customization
Hoops in steel available with thermoset powder coating in RAL colours or galvanized finish. Available in 216 RAL colours for customization according to visual identity.

Characteristics / technical specifications

• Modularity: modular units composed of two hoops, number of modules extendable.
• Freestanding, can be fixed on soil, asphalt, slabs or concrete.
• Material: steel, finish thermoset powder coating RAL or galvanized.
• Height above ground: 80 cm.
• Width: 56 cm.
• Spacing between hoops: 84 cm.
• Tube diameter: 60 mm.
• Tube thickness: 2.5 mm.
• Structure warranty: 5 years (exclusions: vandalism, non-compliant installation, impact to the paint).
