Modular cycle shelter CLAIRIÈREgalvanised steelmultiplacepublic
Add to favorites
Compare this product
Characteristics
- Specifications
- modular
- Material
- galvanised steel
- Capacity
- multiplace
- Location
- for public space, for urban areas, outdoor, for public building, public
Description
Presentation

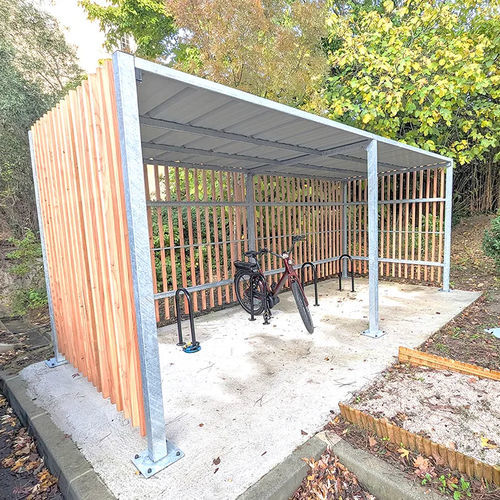

A modular shelter custom-sized to the required parking capacity. The Clairière bicycle shelter provides weather-protected parking and is suitable for municipalities, businesses and educational institutions. Appropriate for both short- and long-term parking.
Design and modularity
With a clean, modern design, the Clairière shelter integrates easily into public and private spaces while remaining accessible to cyclists. Custom dimensions from 3 m to over 13 m, modular in 1 m increments and adaptable to the required capacity.
Uses and customization
Solution tailored for municipalities, companies and schools. Options include integration of bike hoops, wooden cladding or metal tube cladding, closure options and specific fittings (closing doors available as an option). Mounting kit supplied.
Shelter characteristics (table)
Clear height: 2.20 m
Depth: 2.30 m
Length: from 3 m, modular every 1 m
Posts: steel tube 80x2
Purlins and rafters: steel tube 60x30x2
Wood support: steel tube 40x2
Base plates: 250x6 adjustable in height by 10 cm
Cladding: larch battens 40x30 (option: metal tubes)
Roof: corrugated steel sheet, color RAL 7016
Gutters with slope
Rainwater collected into the rear central post
Hot-dip galvanized finish
About (table)
Effective protection provided by a 2.30 m wide roof.
Rainwater collection in a rear gutter with slope.
Drainage into rear central posts with an 80 mm section outlet (prevents clogging by leaves, etc.), redirectable by adding a collector.
Double rafters every 2.50 m to 3 m depending on shelter length.
Two intermediate purlins for lengths 2.50 m to 3 m, with a 70 cm spacing.
Technical specifications
A modular shelter custom-sized to the required parking capacity. The Clairière bicycle shelter provides weather-protected parking and is suitable for municipalities, businesses and educational institutions. Appropriate for both short- and long-term parking.
Design and modularity
With a clean, modern design, the Clairière shelter integrates easily into public and private spaces while remaining accessible to cyclists. Custom dimensions from 3 m to over 13 m, modular in 1 m increments and adaptable to the required capacity.
Uses and customization
Solution tailored for municipalities, companies and schools. Options include integration of bike hoops, wooden cladding or metal tube cladding, closure options and specific fittings (closing doors available as an option). Mounting kit supplied.
Shelter characteristics (table)
Clear height: 2.20 m
Depth: 2.30 m
Length: from 3 m, modular every 1 m
Posts: steel tube 80x2
Purlins and rafters: steel tube 60x30x2
Wood support: steel tube 40x2
Base plates: 250x6 adjustable in height by 10 cm
Cladding: larch battens 40x30 (option: metal tubes)
Roof: corrugated steel sheet, color RAL 7016
Gutters with slope
Rainwater collected into the rear central post
Hot-dip galvanized finish
About (table)
Effective protection provided by a 2.30 m wide roof.
Rainwater collection in a rear gutter with slope.
Drainage into rear central posts with an 80 mm section outlet (prevents clogging by leaves, etc.), redirectable by adding a collector.
Double rafters every 2.50 m to 3 m depending on shelter length.
Two intermediate purlins for lengths 2.50 m to 3 m, with a 70 cm spacing.
Technical specifications
- Clear height: 2.20 m
- Depth: 2.30 m
- Length: modular from 3 m and every 1 m
- Posts: steel tube 80x2
- Purlins and rafters: steel tube 60x30x2
- Wood support: steel tube 40x2
- Base plates: 250x6 adjustable in height by 10 cm
- Cladding: larch battens 40x30 (option metal tubes)
- Roof: corrugated steel sheet, color RAL 7016
- Useable roof width 2.30 m
- Rainwater collection in rear gutter with drainage via central posts
- Hot-dip galvanized structure
- Double rafters and intermediate purlins according to length
- Mounting kit supplied
