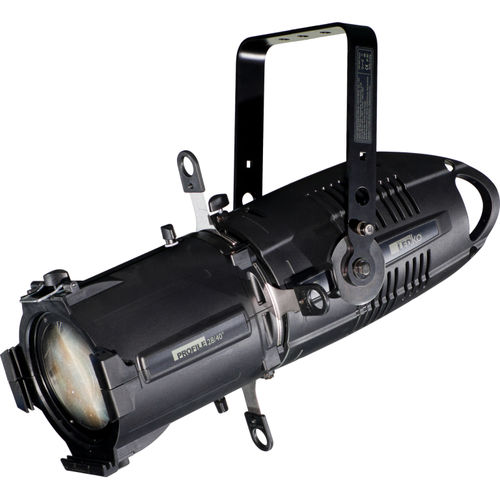

LEDko DIM is the phase dimmable version of the iconic LEDko.
This version can be powered by traditional dimmers and therefore represents a perfect refitting solution in all installations where traditional dimmers are still in use.
An external dimming knob allows this version to be controllable through traditional dimmers, DMX or in a stand-alone basis.
Both Tungsten (3.200 K) and Daylight (5.600 K) versions available.
SPECIFICATIONS
Fixed white CCT: 3.200 K
Four blade framing system, each shutter blade is adjustable for radial position and angle
Electronic 16 bit dimming with 2 selectable curves, simulating halogen or discharge lamp based fixtures
Synchronized, random or pulse electronic strobe
Flicker-free operation with LEDs frequency controlled via DMX from 640 to 1.500 Hz
Fan setting with 3 different options (low, auto or DMX regulated)
CE approved
IP rating: 20
LIGHT SOURCE
Tungsten COB LED (CRI 80, TLCI 65 / CRI 90, TLCI 88). Average LED lifetime: a minimum of 80% of the initial luminous flux will be maintained after approx. 50.000 hours of usage (50.000 LM80).
PHYSICAL SIZE
Length: 362 mm (14.2 in) - with Profile Zoom 28°/40° optic: 601 mm (23.6 in)
Width: 212 mm (8.4 in)
Height: 189 mm (7.5 in) - with bracket: 372 mm (14.6 in)
Weight: 6 Kg (13.2 in) - with Profile Zoom 28°/40° optic: 8.3 Kg (18.3 lbs)
CONTROL PROTOCOL AND PROGRAMMING
Dimming controlled via standard external power dimming unit or with potentiometer knob
USITT DMX512A
DMX channels: 5
Setting, addressing, testing and measurements via LEDs display
RDM (Remote Device Management)
