KEY FEATURES

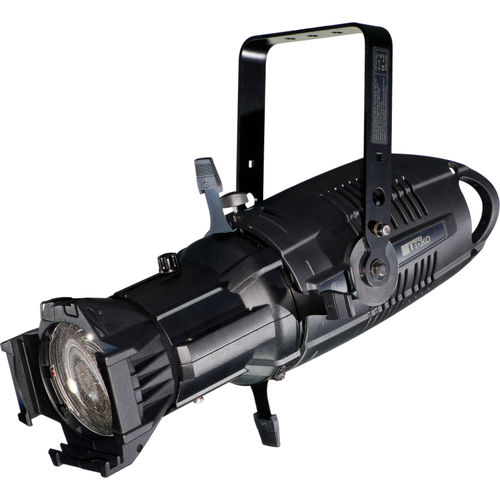

- LED profile spot
- 2.700 - 6.500 K Continuously Variable Correlated Color Temperature
- CRI ≥ 95 (up to 97)
- Also compatible with new Fresnel and PC optics with shutters (Soft Profile)
- Guaranteed flicker-free operation (DMX controlled PWM frequency)
- PowerCon In/Out, up to 8 fixtures powered in series for easy installations
- The fan setting allows three options: low, auto and DMX regulated
- Instant gobos from standard printers
SPECIFICATIONS
Fixed white CCT: 3.200 K
Four blade framing system, each shutter blade is adjustable for radial position and angle
Electronic 16 bit dimming with 3 selectable curves (exponential, logarithmic or linear)
Synchronized, random or pulse electronic strobe
Flicker-free operation with LEDs frequency controlled via DMX from 600 to 19.000 Hz
Fan setting with 3 different options (low, auto or DMX regulated)
CE approved
IP rating: 20
LIGHT SOURCE
Tungsten COB LED (CRI 80, TLCI 65 - CRI 90, TLCI 88). Average LED lifetime: a minimum of 80% of the initial luminous flux will be maintained after approx. 50.000 hours of usage (50.000 LM80).
PHYSICAL SIZE
Length: 362 mm (14.2 in) - with Profile Zoom 28°/40° optic: 601 mm (23.6 in)
Width: 212 mm (8.4 in)
Height: 189 mm (7.5 in) - with bracket: 372 mm (14.6 in)
Weight: 6 kg (13.2 lbs) - with Profile Zoom 28°/40° optic: 8.5 Kg (18.7 lbs)
CONTROL PROTOCOL AND PROGRAMMING
USITT DMX512A
DMX channels: 5 / 1
Setting, addressing, testing and measurements via LEDs display
RDM (Remote Device Management)
ELECTRICAL SPECIFICATIONS CONNECTIONS
AC power: 85-264 V, auto-sensing, 50/60 Hz
In and Out PowerCon connectors to feed up to 8 (at 230 V) or 4 (at 115 V) fixtures
