Aluminum spring rocker BMDU-002

galvanised steelstainless steelHDPE

Product Details
The Muelle Estrella seesaw is a certified playground equipment designed for parks and outdoor playgrounds. Its attractive star-shaped design and its manufacture with highly resistant materials make it the ideal choice to guarantee fun, safety and durability in any children's playground.

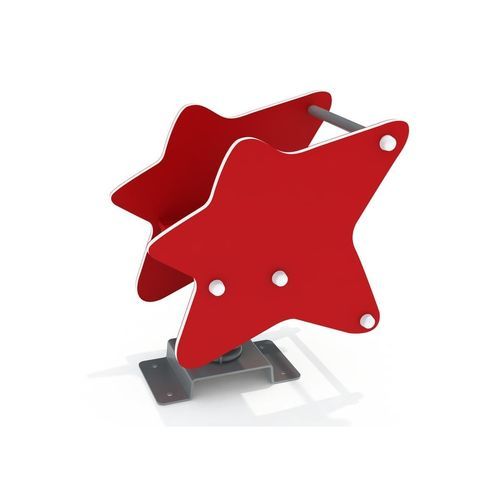

Spring rocker with star-shaped design - safe playground fun
The Muelle Estrella seesaw for outdoor playgrounds is a play equipment that combines safety, resistance and an eye-catching design that children love.

Its double decorative star-shaped panel structure not only adds stability, but also visual appeal that invites play and interaction.

Made of high-density polyethylene (HDPE) and with a steel spring reinforced with baked-on paint, this rocker arm offers high resistance to impacts, UV rays, temperature changes and corrosion, guaranteeing a long service life even under intensive outdoor use conditions.

Thanks to its ergonomic and safe design, the Star Dock Rocker is a perfect children's game for:

• Schools and kindergartens, encouraging safe play at recess.
• Municipal and community parks, adding value and attractiveness to the children's area.
• Private recreational facilities or neighborhood communities, with low maintenance and easy installation.

Certified and homologated children's seesaw
All our seesaws are certified by TÜV and comply with the European standard EN1176, which ensures a totally safe use in playgrounds, schools, kindergartens, neighborhood communities and recreational areas.

Technical and Safety Specifications

• Dimensions (mm): 560 × 350 × 631
• Maximum fall height (mm): 340
• Safety area (mm): 2530 × 2350
• Standards: TÜV certified. Complies with EN 1176-1:2017/A1:2023 and EN 1176-6:2017/AC:2019.
• Recommended age of use: From 1 year of age.
• Recommended use: Public parks, schools, nurseries, hotels, campsites and housing developments.

Materials and Manufacturing Processes

• High density polyethylene (HDPE) panels resistant to impact, corrosion and environmental factors such as UV rays. Non-slip surface for greater safety. Hygienic material that prevents the growth of bacteria or fungi. Maintenance free.
• Helical spring made of galvanized steel tubes, sandblasted and coated with polyester powder paint for outdoor use, resistant to corrosion and UV rays.
• Stainless steel hardware and high-strength aluminum alloy fasteners with rounded edges.
• Ecological and 100% recyclable product.

Installation

• Installation - Type I: For hard surfaces (concrete), fastening is done with expansion bolts on concrete slab. Requires safety surface (rubber or other cushioning material).
• Installation - Type II: For soft soils (soil or sand), the fastening is made with expansion bolts on concrete blocks buried in the ground.

Characteristics / Technical Specifications

• Star-shaped double panel design
• High-density polyethylene (HDPE) construction
• Galvanized steel helical spring with polyester powder coating
• Stainless steel and aluminum alloy hardware
• Certified by TÜV, compliant with EN1176
• Dimensions: 560 × 350 × 631 mm
• Maximum fall height: 340 mm
• Safety area: 2530 × 2350 mm
• Recommended age: from 1 year
• Suitable for public parks, schools, nurseries, hotels, campsites, housing developments
• Ecological and 100% recyclable
