Aluminum spring rocker BMDU-001

galvanised steelstainless steelHDPE

Product Overview

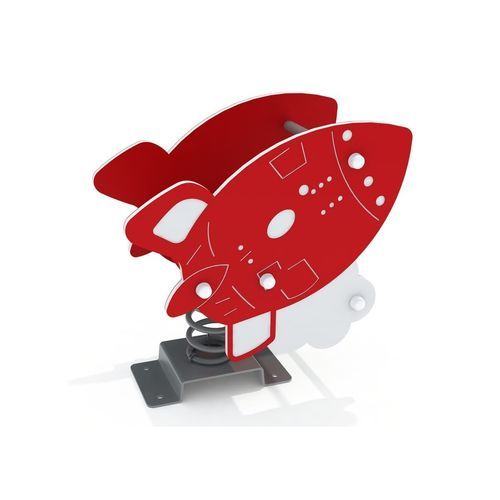

The Rocket Dock seesaw is a safe, sturdy and fun playground equipment, perfect for outdoor playgrounds. Its space rocket design invites children to enjoy a unique play experience while developing balance, coordination and creativity.

Playground Seesaws: Dock Seesaws with Space Rocket Design
The Rocket Dock seesaw is an ideal play set for any outdoor playground that seeks to combine fun, safety and durability. With its attractive rocket-shaped design, this seesaw invites children to immerse themselves in an imaginative play experience, enhancing both fun and motor development.

Made of high-density polyethylene (HDPE) and equipped with a steel spring reinforced with baked-on paint, this set combines strength and stability with minimal maintenance.

Its materials make it highly resistant to UV rays, corrosion, impacts and temperature changes, guaranteeing a long service life even in conditions of intensive outdoor use.

In addition, the rocker features a double decorative panel, which not only reinforces the structure, but also adds an attractive visual finish for the little ones.

Certified and homologated children's seesaw
All our seesaws are certified by TÜV and comply with the European standard EN1176, which ensures a totally safe use in playgrounds, schools, kindergartens, neighborhood communities and recreational areas.

Technical and Safety Specifications of the Children's Seesaw

• Dimensions (mm): 614 × 360 × 637
• Maximum fall height (mm): 340
• Safety area (mm): 2614 × 2360
• Standards: TÜV certified. Complies with EN 1176-1:2017/A1:2023 and EN 1176-6:2017/AC:2019.
• Recommended age of use: From 1 year of age.
• Recommended use: Public parks, schools, nurseries, hotels, campsites and housing developments.

Materials and Manufacturing Processes for Gaming Equipment

• High density polyethylene (HDPE) panels resistant to impact, corrosion and environmental factors such as UV rays. Non-slip surface for greater safety. Hygienic material that prevents the growth of bacteria or fungi. Maintenance free.
• Helical spring made of galvanized steel tubes, sandblasted and coated with polyester powder paint for outdoor use, resistant to corrosion and UV rays.
• Stainless steel hardware and high-strength aluminum alloy fasteners with rounded edges.
• Ecological and 100% recyclable product.

Installation

• Installation - Type I: For hard surfaces (concrete), fastening is done with expansion bolts on concrete slab. Requires safety surface (rubber or other cushioning material).
• Installation - Type II: For soft soils (soil or sand), the fastening is made with expansion bolts on concrete blocks buried in the ground.

Characteristics / Technical Specifications

• Product: Rocket Dock seesaw / Spring Rocker Rocket
• Design: Space rocket shape
• Material: High-density polyethylene (HDPE), reinforced steel spring, stainless steel hardware, aluminum alloy fasteners
• Finish: Baked-on paint, non-slip surface
• Resistance: UV rays, corrosion, impacts, temperature changes
• Certification: TÜV, EN1176
• Recommended age: From 1 year
• Recommended use: Public parks, schools, nurseries, hotels, campsites, housing developments
• Dimensions: 614 × 360 × 637 mm
• Maximum fall height: 340 mm
• Safety area: 2614 × 2360 mm
• Maintenance: Maintenance free
• Ecological: 100% recyclable
