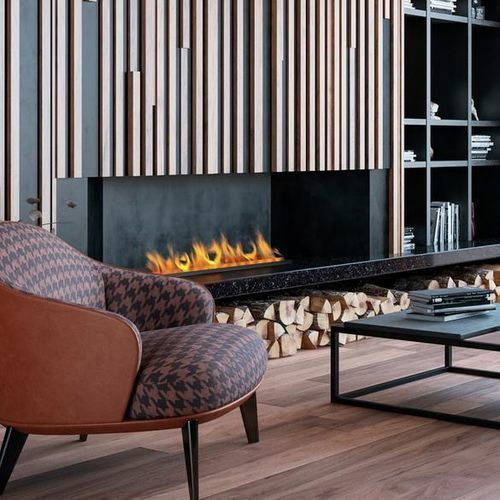

Central fireplace insert CASSETTE 1000

electricmetalcontemporary

Product overview
The Dimplex Cassette Multi Projects is an electric fireplace cassette using patented Optimyst technology to reproduce realistic three-dimensional flames through cold water vapour and multicolour RGB LEDs. Designed for integration in bespoke frames and installation projects, the cassette connects to a fixed water supply (or to an optional tank with pump) and can be combined with other Projects cassettes for continuous multi-unit installations.

Alternate description (variant)
Experience realistic, safe flames without a flue. The Optimyst flame effect produces volumetric flames and colour variation for project-level installations. Cassette Multi Projects units are linkable and configurable to create see-through fireplaces, cinewalls or extended flame lines for commercial and residential designs.

Key benefits

• Fixed water connection option — no manual refills required.
• Linkable with other Projects cassettes for combined installations.
• Crackling logs sound effect with adjustable volume.
• Designed for installation projects and custom frames.

Installation & operation
Available in two built-in sizes to suit different openings. The fixed water connection or optional tank-with-pump configuration removes the need for frequent manual refilling, making the product suitable for continuous operation in both residential and commercial projects.

Control & connectivity
Operate via manual controls, infrared remote or the Flame Connect app. Full control over flame colour and brightness enables tailored ambience for hospitality, retail or high-end residential spaces.

Flame & styling options
Full multicolour RGB capability allows selection between warm traditional tones and bold contemporary colours via app or remote. Brightness and colour adjustments provide flexible styling for varied interior concepts.

Appearance options
Standard delivery includes a sleek metal front plate; an optional log set is available for a more traditional appearance. Multiple units can be linked and controlled together, sharing a single water feed to create the visual effect of an uninterrupted flame line.

Additional features

• Fixed water supply or water tank with pump configuration.
• Adjustable flame colours and brightness (RGB LED).
• Sound: crackling logs effect with adjustable volume.
• Controls: manual, remote and app (Flame Connect).

Technical specifications

• Model (Cassette 500): CAS500P-RGB-EU
• Variant SKU (Cassette 500): 400001274
• GTIN/UPC (Cassette 500): 05011139084972
• Model (Cassette 1000): CAS1000P-RGB-EU
• Variant SKU (Cassette 1000): 400001275
• GTIN/UPC (Cassette 1000): 05011139084989
• Flame effect type: Optimyst
• Flame colour options: Yes (multicolour RGB LED)
• Adjustable flame speed: No
• Heating element: No
• Power consumption (flame effect) (W): 260 (Cassette 500) / 470 (Cassette 1000)
• Power consumption (W) (general): 260 (Cassette 500) / 470 (Cassette 1000)
• Sound: Yes (crackling logs effect)
• View type: All round view
• Warranty: 2 years
• Build-in dimensions LxHxW (Cassette 500): 220 x 508 x 304 mm
• Build-in dimensions LxHxW (Cassette 1000): 220 x 1017 x 304 mm
• Product width mm: 598 (Cassette 500) / 1017 (Cassette 1000)
• Product height mm: 220
• Product depth mm: 304
• Weight: 8 (units as provided on site)
• Removable water tank: No
• Water supply type: Fixed water connection or water tank with pump
• Water tank capacity (litres): N/A
• Water tank runtime (up to hours): N/A
• Controls: Manual, Remote and App (Flame Connect)
• Lamp type: RGB LED
• Fuel bed available: N/A
• Type of glass: N/A
• Comfort saver: No
• Hotel mode: Yes
