4-sided fireplace insert 400001276

electricmetalcontemporary

Product overview

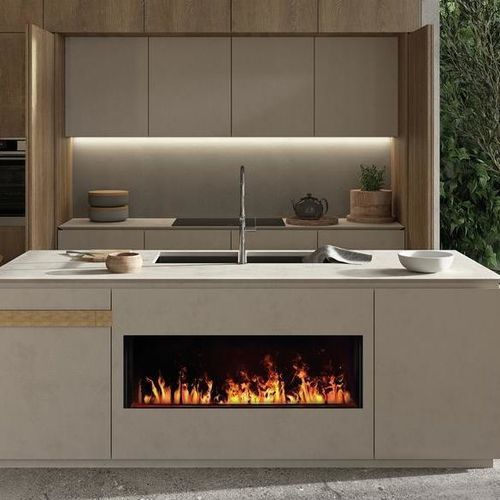

Imagine three-dimensional flames appearing in any room. Using patented cold water vapor and multicolour RGB LEDs, the Dimplex Cassette Retail Multi produces a realistic, safe flame effect suitable for architectural and interior installations. Retail cassettes can be paired and combined to create see-through fireplaces, cinewalls or continuous multi-module installations.

Key features

• Easy-to-fill removable water tank providing 8–12 hours of continuous operation.
• Connectable with other Retail Cassettes for seamless multi-cassette installations.
• Adjustable crackling logs sound effects.
• Designed for installation projects and custom frames.

Big flames, big impact
The Dimplex Cassette Retail Multi is available in two sizes to suit different installation needs. Both models include an integrated water reservoir that is simple to refill and provides extended runtime for consistent ambiance.

Full control
Both CAS500R-RGB-EU and CAS1000R-RGB-EU can be controlled via the included remote, directly on the appliance, or through the Flame Connect app. Units are connectable so multiple cassettes can be operated together with a single remote to create a continuous flame effect across larger installations.

Multicolour flames
Advanced multicolour technology offers a wide palette of colours selectable via the Flame Connect app or remote control. Choose warm traditional tones or vibrant contemporary hues to suit the project and interior design.

Modern or realistic
Each cassette is supplied with a modern metal front plate. An optional realistic log set is available to provide a traditional wood-burning appearance when required.

Features / Technical specifications

• Cassette 500 Retail Multi (variant 400001276)
• GTIN / UPC: 05011139084996
• Model number: 400001276
• Model: CAS500R-RGB-EU
• Build-in dim LxHxW (mm): 220 x 508 x 304
• Product Width (mm): 598
• Product Height (mm): 220
• Product Depth (mm): 304
• Weight: 8 kg
• Power consumption (flame effect): 260 W
• Flame effect type: Optimyst
• Flame colour options: Yes (RGB LED)
• Adjustable flame speed: No
• Heating element: No
• Sound: Yes (crackling logs, adjustable volume)
• Controls: Manual, Remote and App (Flame Connect)
• Removable water tank: Yes
• Water tank capacity: 1.2 litres
• Water tank runtime (up to hours): 8–12
• Water supply type: Bottle fed
• View type: All round view
• Hotel mode: Yes
• Warranty: 2 years


• Cassette 1000 Retail Multi (variant 400001277)
• GTIN / UPC: 05011139085009
• Model number: 400001277
• Model: CAS1000R-RGB-EU
• Build-in dim LxHxW (mm): 220 x 1017 x 304
• Product Width (mm): 1017
• Product Height (mm): 220
• Product Depth (mm): 304
• Weight: 14.5 kg
• Power consumption (flame effect): 470 W
• Flame effect type: Optimyst
• Flame colour options: Yes (RGB LED)
• Adjustable flame speed: No
• Heating element: No
• Sound: Yes (crackling logs, adjustable volume)
• Controls: Manual, Remote and App (Flame Connect)
• Removable water tank: Yes
• Water tank capacity: 2.4 litres
• Water tank runtime (up to hours): 8–12
• Water supply type: Bottle fed
• View type: All round view
• Hotel mode: Yes
• Warranty: 2 years
