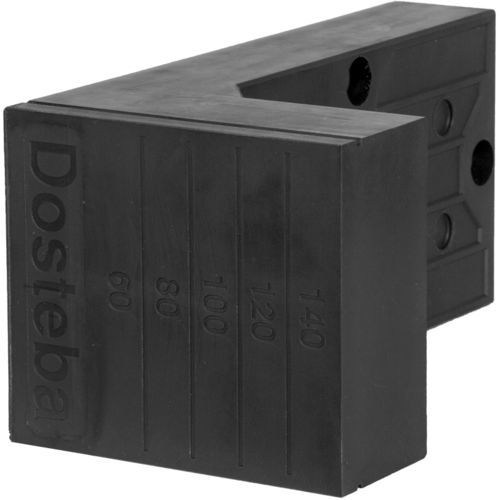

ETI fastening system TRA-WIK®-PU

polyurethanefor insulated facadefor facade

Supporting brackets TRA-WIK®-PU are suitable for thermal bridge-free mounting in thermal insulation composite systems, rear-ventilated façades, interior insulations etc. Description Supporting brackets TRA-WIK®-PU are made of black-coloured, rot-resistant and CFC-free PU-rigid foam plastic (polyurethane) with three embedded washers. Dimensions Base surface: - 280 x 125 mm Types T: - 60 - 300 mm Usable surface area in the reveal: - 100 x 85 / 160 x 85 mm Usable surface area on the façade surface: - 85 x 20 mm Hole distance: - 100 x 100 mm Volumetric weight PU: - 550 kg/m3 Fastening material Screw-plug: - SXRL 10 x 120 FUS Bore hole diameter: - 10 mm Min. drilling depth: - 80 mm Min. anchoring depth - 70 mm - Threaded rod: - FIS A M8 x 130 Bore hole diameter: - 10 mm Min. drilling depth: - 60 mm Min. anchoring depth - 60 mm - Threaded rod: - FIS A M8 x 150 Anchor sleeve: - FIS H 12 x 85 K Bore hole diameter: - 12 mm Min. drilling depth: - 95 mm Min. anchoring depth - 85 mm
