Steel fastening system TRA-WIK®-ALU-RF

polyurethaneresinfor facade

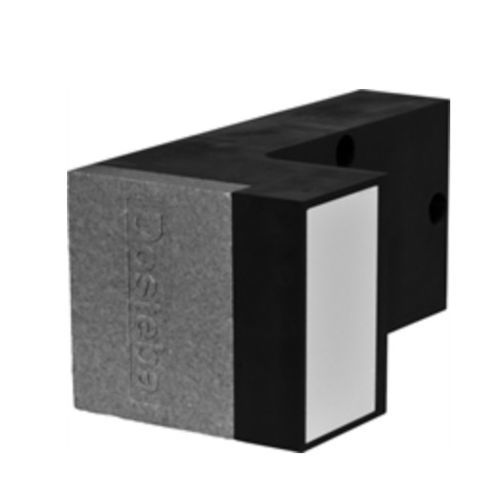

Supporting brackets TRA-WIK®-ALU-RF are suitable for thermal bridge-free mounting in thermal insulation composite systems, rear-ventilated façades, interior insulations etc. Supporting brackets TRA-WIK®-ALU-RF are made of black-coloured, rot-resistant and CFC-free, PU-rigid foam plastic (polyurethane) with a foamed steel sheet panel for the non-positive screw attachment with the anchorage, an aluminium plate for screwing the attachment part and a compact plate (HPL), which ensures optimum distribution of pressure on the surface. Base surface: - 280 x 125 mm Types T: - 80 - 300 mm Compact plate: - 117 x 65 x 6 mm Useable surface area: - 97 x 45 mm Thickness aluminium plate: - 6 mm Hole distance: - 100 x 100 mm Volumetric weight PU: - 350 kg/m³ Screw-plug: - SXRL 10 x 100 FUS Bore hole diameter: - 10 mm Drilling depth (min.): - 80 mm Anchorage depth (min.): - 70 mm - Threaded rod: - FIS A M8 x 110 Injection-mortar: - FIS Bore hole diameter: - 10 mm Drilling depth (min.): - 60 mm Anchorage depth (min.): - 60 mm - Threaded rod: - FIS A M8 x 130 Anchor sleeve: - FIS H 12 x 85 K Injection-mortar: - FIS Bore hole diameter: - 12 mm Drilling depth (min.): - 95 mm Anchorage depth (min.): - 85 mm
