Cellular polycarbonate panel arcoPlus® 626 Reversò

buildingwith UV protectiontranslucent

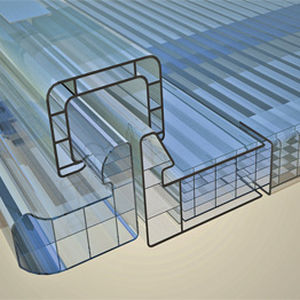

arcoPlus®626 reversò is a modular system consisting of 6-wall co-extruded multiwall polycarbonate panels, with a thickness of 20mm, anchored to existing structures by means of special anchoring brackets. The panels are made integral with each other by means of a protected polycarbonate joint cover profile, which can be snapped on, or by means of an aluminium connector, which guarantee perfect water tightness. Min.5% slope for flat roofs and min. radius of 4.0m for curved roofs. Features Thermal insulation - 1,7 W/m²K Acoustic insulation - 20 dB Linear thermal expansion - 0,065mm/m°C Temperature range - -40°C +120 °C U.V. rays protection - Co-extrusion on 2 sides Fire reaction EN 13501-1 - EuroClass B-s1,d0 Min. bending radius - 4,0m MIN slope - 5% Light transmission - crystal 58% Advantages Easy and low-cost installation Light transmission Minimum bend radius 4m Resistance to UV rays and to hail Thermal insulation
