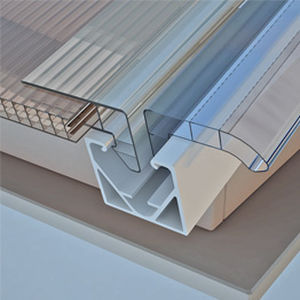

Cellular polycarbonate panel arcoPlus® 684/6104/6124

for roofwith UV protectiontranslucent

arcoPlus®684-6104-6124 are three modular systems consisting of 4-wall co-extruded multiwall polycarbonate panels with a thickness of 8-10 or 12mm, snap-fitted onto aluminium profiles, used for vertical windows, roofs (min. slope 5%) and curved roofs (minimum radius 2.0m with profiles cod.4248 and 4249; minimum radius 3.0m with aluminium rib profile cod.4636). Features Thermal insulation - 3,3 - 3,0 - 2,7 W/m²K Acoustic insulation - 18 dB (sp.8-10mm) 19dB (sp.12mm) Linear thermal expansion - 0,065mm/m°C Temperature range - -40°C +120 °C U.V. rays protection - Coextrusion Fire reaction EN 13501-1 - EuroClass B-s1,d0 Min. bending radius - 2.0m (with profiles code 4248 and 4249) 2.0m (with profiles code 4248 and 4249) - 3.0m (with profile code 4636) MIN slope - 5% Light transmission - crystal 70% Light transmission (τv) (6104) - crystal 70% Light transmission(τv) (6124) - crystal 68% Advantages Easy and low-cost installation Light transmission Resistance to UV rays and to hail Self-supporting installation Thermal insulation
