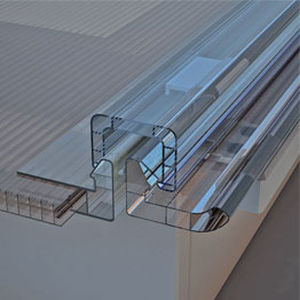

Cellular polycarbonate panel arcoPlus® 684-6104-6124 Reversò

for roofwith UV protectiontranslucent

arcoPlus®684-6104-6124 reversò are three modular systems consisting of 4-wall multiwall polycarbonate panels, with double UV protection, with a thickness of 8-10-12mm, anchored to existing structures using special brackets. The panels are made integral with each other by means of a protected polycarbonate joint cover profile, which can be snapped on, which guarantees perfect water tightness. Min. slope 5% for flat roofs and min. bending radius of 2.0m for curved roofs with profiles cod.4248 and 4249 and min. radius 3.0m with aluminium rib profile cod.4636 Features Thermal insulation - 3,3 - 3,0 - 2,7 W/m²K Acoustic insulation - 18 dB (sp.8-10mm) 19dB (sp.12mm) Linear thermal expansion - 0,065mm/m°C Temperature range - -40°C +120 °C U.V. rays protection - Coextrusion Fire reaction EN 13501-1 - EuroClass B-s1,d0 Min. bending radius - 2.0m (with profiles code 4248 and 4249) Min. bending radius - 3.0m (with profile code 4636) MIN slope - 5% Light transmission (τv) (684) - crystal 70% Light transmission (τv) (684) - crystal 70% Light transmission (τv) (684) - crystal 80% Advantages Easy and low-cost installation Light transmission Minimum bend radius 2.0m Resistance to UV rays and to hail Thermal insulation
