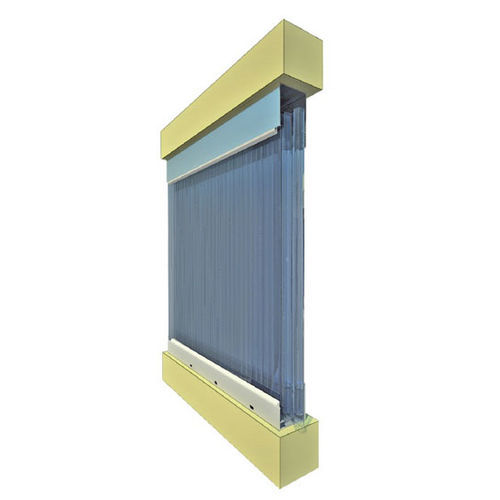

Cellular polycarbonate panel arcoPlus® 347/547/549

for windowbuildingwith UV protection

Modular system of multiwall UV protected polycarbonate for windows and translucent roofing applications arcoPlus®547 and arcoPlus®549 are modular systems of coextruded 7 walls and 9 walls polycarbonate panels with a thickness of 40mm, aluminium profiles, accessories and opening windows, designed for simple and versatile use. All the systems can be used for roofing applications with a minimum slope of 7% Production standard Thickness - 40mm Structure - 7 walls (347-547) - 9 walls (549) Effective modular width - 500mm (547-549) Panel length - No limits Available colors - Standard + Caleido + RTG Features Thermal insulation - 1,1 (347-547) - 1,0 (549) W/m2K Acoustic insulation - 21 dB Linear thermal expansion - 0,065mm/m°C Temperature range - -40°C +120 °C U.V. rays protection - Co-extrusion Fire reaction EN 13501-1 - EuroClass B-s1,d0 Minimum bending radius - Non-bendable MIN slope - - Light transmission (τv) (547) - Crystal 54% Light transmission (τv) (549) - Crystal 50% Advantages Easy and low-cost installation High load resistance Light transmission Resistance to UV rays and to hail Thermal insulation
