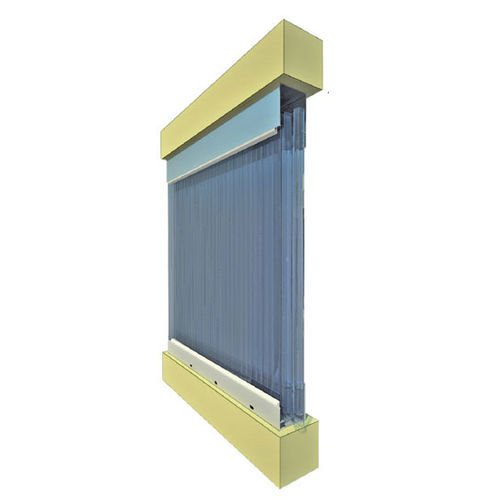

Cellular polycarbonate panel arcoWall® 5613

for curtain walltranslucenttransparent

arcoWall®5613 is a modular system of coextruded 13 walls polycarbonate panels with a thickness of 60mm, and exclusive aluminum profiles for variable solutions that can be ustomized for the needs of any project. The self-bearing translucent walls system, arcoWall®5613, comes from the experience of over 50 years of our company. We are constantly engaged in exploring alternatives in the building market as well as the creation of unique and innovative systems. High performance huge window Horizontal window with opening systems Traslucent façade insert Production standard Thickness - 60mm Structure - 13 walls Effective modular width - 500mm Panel length - No limits Thermal insulation - 0,7 W/m²K Acoustic insulation Rw ( ISO 717-1) - 22 dB Available colors - Standard + Caleido + RTG Features Linear thermal expansion - 0,065mm/m°C Temperature range - -40°C +120 °C U.V. rays protection - Coestrusione Fire reaction EN 13501-1 - EuroClass B-s1,d0 Raggio curvatura MIN - non curvabile Pendenza MIN - - Trasmissione Luminosa (τv) - Cristallo 37% Advantages Applied with opening systems Easy and low-cost installation Fire reaction EN 13501-1 EuroClass B-s1 High insulation coefficient High wind resistance Light transmission Thermal bridge interruption
