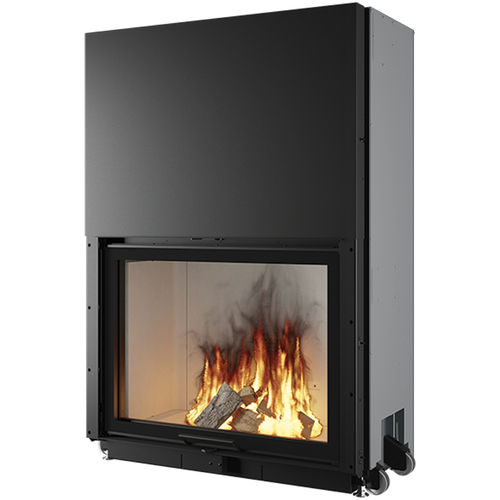

Closed wood hearth WINDO 90

1-sidedmetalglass

Suitable for a flush-to-floor installation • Combustion chamber black or white refractory • smoke outlet ø 18 cm upper, female • Tilt and ups & downs door opening for the glass cleaning • Outputs for ducting hot air - n°4 • Combustion setting lever • Post-combustion system • Hot air channelling up to 4 adjoining rooms (optional kit) • Removable handle • 4 adjustable feet height • 4 Pivoting wheels easing handling while fitting • With natural convection (N) , with 3 different choice options for ventilation: fan kit, Air-diffuser and ventilated air vents. Optional: • Frame • Hood mounting template • Fan kit (side fitting) • Kit UNO/bis, DUE/bis, TRE/bis Kit QUATTRO/bis, CINQUE/bis • kit AIR DIFFUSER “Adjacent” • Ducting vents Split, Bent, Origami, Sharp Technical data - - min/max width - cm - 113 depth - cm - 53 height - cm - 153 fireplace mouth measurement (W x D x H) - cm - 84,5x31x61 useful heat output - kW - 17 efficiency - % - 78 fuel consumption (wood) - kg/h - 4,7 Ø combustion product outlet - cm - 18 total weight - kg - 250 vol. that can be heated (insul. env. by Law 10/91) - m³ - 445
