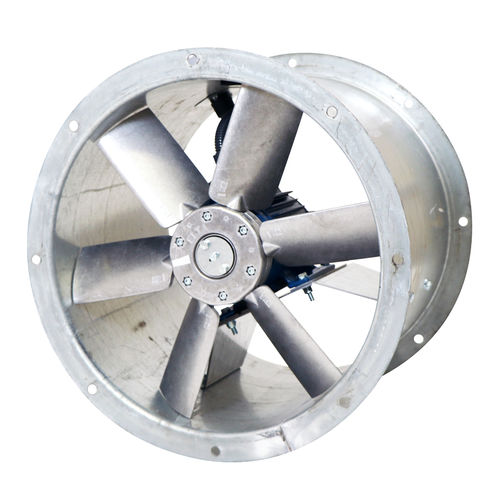

Axial fan Turboflow Max TF

ductcommercialkitchen

Long Cased Kitchen Axial Fan • 4 standard sizes from 450mm to 630mm • Air volume flow rates up to 4.00 m%/s • Static pressures up to 916 Pa • Suitable for operating temperatures up to +50°C • Available in AC Overview The Turboflow Max TF is a single stage axial fan which has been specifically developed to tackle higher pressure requirements with a straightforward, efficient and definitive approach. Downloads Product Overview Installation and Maintenance Features and Benefits Easy Installation Motors are wired via a weatherproofed cable to an IP55 protected terminal box mounted on the outside of the unit casing for ease of electrical connection. Efficient Performance High efficiency adjustable pitch aerofoil impellers are provided with blades made from high quality pressure die cast aluminium. Increased blade chord and twist provides 7% higher efficiency reducing overall energy consumption. Increased blade root reduces stress levels which make our range of impellers ideal for arduous fan applications. Corrosion resistance Suitable for external mounting as standard. Controllability Suitable for VFD speed control and integration into a building management system. Using an inverter to control fans to reduce fan speed can provide significant cost-savings through lower energy consumption. Warranty Each TF has a 24 month warranty.
