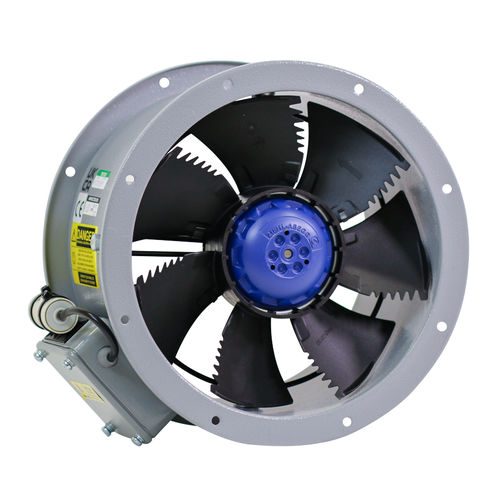

Axial fan Raptor SDA

ductindustrialindoor

Short Cased Mounted Axial Flow Fan • 8 standard sizes from 250mm to 630mml • Air volume flow rates up to 4.60 m⅜s • Static pressures up to 290 Pa • Suitable for operating temperatures up to +70°C • Available in AC & EC Overview The Raptor SDA is a short cased mounted axial fan and is normally mounted in ductwork applications. It incorporates the Ziehl-Abegg FE2owlet aerofoil profiled impeller. Both strong and durable, this range also boasts low noise and increased efficiency levels. Features and Benefits Easy Installation A fitted IP55 terminal box allows the fan to be positioned conveniently to incoming electrical inputs. Efficient Performance Aerofoil section, sickle shaped blades, with serrated trailing edges and winglets based on bionic insights. Corrosion resistance Specially treated against corrosion, powder coated with polyester epoxy paint in pastel beige (RAL 7032). Controllability A range of transformer voltage controllers used to provide five speed step control of single phase or three phase motors. Energy saving Extremely energy efficient as a result of EC technology, easy to commission, built in motor protection and compact in design to reduce casing sizes. AC external rotor motor variants also available. Warranty Each SDA has a 12 month warranty.
