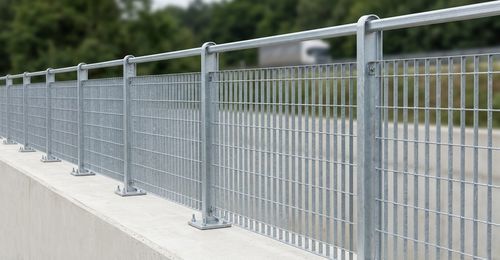

Steel railing SVEVIA

tubular systemmodular

Description
The Svevia parapet is designed for urban, suburban and residential applications. It meets a minimum reference height of 1000 mm and is not penetrable by a 100 mm diameter sphere. The system is verified for a service horizontal linear load up to 200 daN/m (2.0 kN/m).

Specification items

• Modular system composed of posts, handrail and welded-mesh infill panels.
• Handrail: rectangular tubular steel 70×40×3 mm, connected to posts by connection plates.
• Vertical posts: rolled IPE 100 profile, supplied with base plate prepared with four holes for anchoring with threaded rods or equivalent systems.
• Infill: Svevia welded-mesh panels with 62×132 mm mesh, complete with upper and lower frames in 25×4 mm flat bar.
• Standard post spacing (centre-to-centre): 1,992 mm.

General characteristics

• Verified for a horizontal load of 200 daN/m applied on the handrail surface.
• Elements arranged to reduce climbability risk (according to UNI 10809).
• Not penetrable by a 100 mm diameter sphere (according to DM 238/1989).

Components
Panels

• Material: carbon steel UNI EN 10025 S235JR.
• Welded mesh: 62 × 132 mm mesh.
• Vertical elements: flat bars 25×2 mm or 25×3 mm.
• Horizontal elements: round bars Ø 5 mm.
• Distance between vertical elements: 62 mm.
• Distance between horizontal elements: 132 mm.
• Upper and lower panel frames in 25×4 mm flat bar, bent at ends for 40 mm and provided with 12×16 mm slot.

Handrail

• Material: carbon steel UNI EN 10025 S235JR.
• Tubular 70 × 40 mm, thickness 3 mm.
• Handrail ends supplied with two plates 100×70×5 mm with 3 holes Ø 10.5 mm for fastening to posts.

Posts

• Material: carbon steel UNI EN 10025 S235JR.
• Type: IPE 100 with base plate for anchoring 200×150×10 mm with 4 holes Ø 15 mm.
• Post height: 1126 mm.
• Post spacing: 1992 mm.

Fasteners

• Material: stainless steel AISI 304.
• Panel-to-post: 2+2 TDE bolts M10×30 (standard); TTQST anti-theft M10×30 on request.
• Handrail-to-post: 3+3 M10 bolts.
• Base plate: 4+4 threaded rods M12 length 180 mm (not supplied).

Coating

• Hot-dip galvanizing according to UNI EN ISO 1461.
• Polyester thermosetting paint on hot-dip galvanized material in RAL colours available.

Standard dimensions

• Handrail height: 1100 mm.
• Standard post centre distance: 1992 mm.

Regulatory references

• D.M. 17 gennaio 2018 – Technical Standards for Construction (NTC 2018).
• Circular C.S.LL.PP. 21 gennaio 2019, n. 7 – Application instructions for NTC 2018.

Characteristics / technical specifications

• Commercial name: Svevia.
• Structure and panels material: carbon steel UNI EN 10025 S235JR.
• Mesh type: welded mesh, 62×132 mm.
• Handrail: tubular 70×40×3 mm.
• Posts: IPE 100, height 1126 mm, base plate 200×150×10 mm with 4 holes Ø 15 mm.
• Post centre distance: 1992 mm.
• Verified horizontal load: 200 daN/m (2.0 kN/m).
• Corrosion protection: hot-dip galvanizing UNI EN ISO 1461; optional polyester RAL finish.
• Fasteners in stainless steel AISI 304; bolts as specified in specification items.
• Reference minimum height: 1000 mm; not penetrable by Ø 100 mm sphere.
