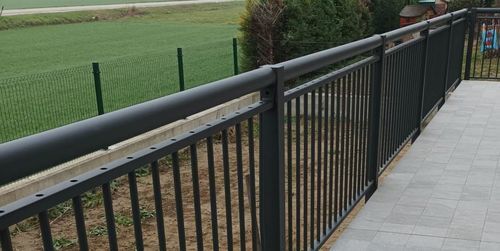

Steel railing MALVASIA

with barsnot specifiednot specified

Description
The Malvasia balustrade by EMMEGI Spa is engineered to provide mechanical resistance, durability and straightforward installation. It is primarily intended for residential applications and complies with the requirements of D.M. 14 June 1989, n. 236, with a minimum height of 1,100 mm and non‑permeability to a 100 mm diameter sphere. The system is designed to resist a linear horizontal service load up to 200 daN/m (2.0 kN/m).

Specification items
The Malvasia balustrade is a modular system composed of posts, a handrail and infill panels made from vertical tubular elements. The upper handrail consists of a steel tube Ø 80×3 mm fixed to the posts by mounting plates. Vertical posts are manufactured from IPE 100 rolled sections and include a base plate with four holes for anchoring to the supporting structure using threaded rods, mechanical anchors or equivalent systems. The infill consists of Malvasia-type panels formed by horizontal U profiles 50×25×2 mm to which vertical steel tubular elements Ø 20 mm are welded at a spacing of 117 mm, providing a clear opening between elements of 97 mm. The standard post spacing (panel width) is 1,992 mm.

Features

• Verified for a horizontal load of 200 daN/m applied to the handrail surface.
• Panel elements are arranged to limit climbability in accordance with UNI 10809.
• Non‑permeable to a 100 mm diameter sphere according to D.M. 14/06/1989.

Components
Panels

• Material: Carbon steel UNI EN 10025 S235JR.
• Vertical elements: tubes Ø 20 mm.
• Horizontal elements: U profiles 50×25×2 mm (upper and lower).
• Distance between vertical elements: 97 mm (centre spacing 117 mm).

Handrail

• Material: Carbon steel UNI EN 10025 S235JR.
• Tube Ø 80 mm, thickness 3 mm.
• Handrail ends fitted with two plates 100×27×5 mm with 2 holes Ø 10 mm for fixing to posts.

Posts

• Material: Carbon steel UNI EN 10025 S235JR.
• IPE 100 profile with base plate for anchoring dimensions 170×170 mm, thickness 10 mm with 4 holes Ø 15 mm.

Fasteners

• Material: stainless steel AISI 304.
• Panel-to-post: 2+2 TDE bolts M10×30 (standard); anti‑tamper TTQST M10×30 (on request).
• Handrail-to-post: 2+2 bolts M10.

Coating

• Hot-dip galvanizing according to UNI EN ISO 1461.
• Polyester thermosetting resin paint over hot-dip galvanized material in RAL colours (on request).

Standard dimensions

• Panel width: 1,992 mm.
• Handrail height: 1,100 mm.
• Post centre distance: 1,992 mm.

Regulatory references

• D.M. 17 January 2018 – Technical Standards for Construction (NTC 2018).
• Circular C.S.LL.PP. 21 January 2019, n. 7 – Application instructions for NTC 2018.
• D.M. 14 June 1989, n. 236 (dimensional requirements and non‑permeability to a 100 mm sphere).

Technical specifications

• Structure material: Carbon steel UNI EN 10025 S235JR.
• Panel vertical elements: tubes Ø 20 mm, element spacing 117 mm, clear gap 97 mm.
• Panel horizontal elements: U profiles 50×25×2 mm (upper and lower).
• Handrail: tube Ø 80 mm, thickness 3 mm; end plates 100×27×5 mm with holes Ø 10 mm.
• Posts: IPE 100 profile; base plate 170×170 mm, thickness 10 mm, 4 holes Ø 15 mm.
• Panel width / post spacing: 1,992 mm.
• Handrail height: 1,100 mm.
• Resistance: verified service horizontal load up to 200 daN/m (2.0 kN/m).
• Safety requirement: non‑permeability to a Ø 100 mm (10 cm) sphere.
• Coating: hot-dip galvanizing according to UNI EN ISO 1461; optional polyester thermosetting paint over galvanized substrate in RAL colours.
