Steel railing BRIDGE

tubular systemmodular

Description
The Bridge guardrail is designed to provide mechanical strength, durability and ease of installation. It is particularly suitable for protecting pedestrian routes in road, urban and extra-urban environments. It is sized to withstand a linear horizontal service load up to 150 daN/m (1.5 kN/m).

Specification
The Bridge guardrail is a modular system composed of posts, handrail and infill panels in welded steel grating. The upper handrail is a square steel tube 40×40×3 mm, connected to the posts by specific fixing plates. The vertical posts are made of rectangular tube 80×40×4 mm and include a base plate with four holes for fastening to the supporting structure. The infill is formed by Svevia welded grating panels with 62×132 mm mesh, complete with upper and lower frames in 25×4 mm flat steel. The clear distance between posts is 2,014 mm.

Characteristics

• Designed for ordinary pedestrian use
• Verified for a horizontal load of 150 daN/m (1.5 kN/m) applied on the handrail surface
• Elements arranged to discourage climbing according to UNI 10809
• Impermeable to a sphere of 100 mm diameter according to DM 238/1989

Components
Panels

• Material: carbon steel UNI EN 10025 S235JR
• Grating mesh: 62 × 132 mm
• Vertical elements: flat bars 25×2 mm
• Horizontal elements: round bars Ø 5 mm
• Distance between vertical elements: 62 mm
• Distance between horizontal elements: 132 mm
• Upper and lower panel frames in 25×4 mm flat bar

Handrail

• Material: carbon steel UNI EN 10025 S275JR
• Square tube 40×40 mm, thickness 3 mm

Posts

• Material: carbon steel UNI EN 10025 S275JR
• Rectangular tube 80×40×4 mm
• Base plate for anchor fixing dimensions 180×120 mm, thickness 15 mm with 4 holes Ø 14 mm

Coating

• Hot-dip galvanizing according to UNI EN ISO 1461
• Polyester thermosetting powder coating on hot-dip galvanized material in RAL colours

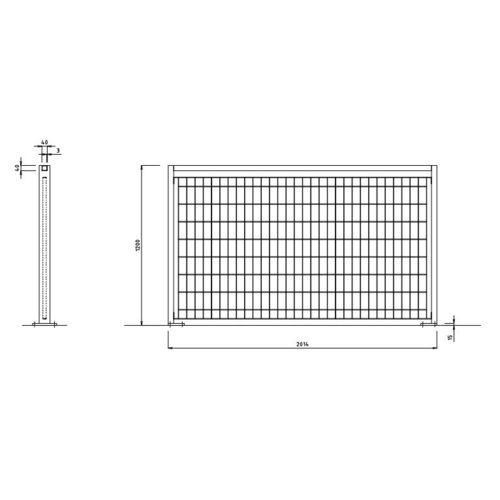

Standard dimensions

• Clear distance between posts: 2014 mm
• Top handrail height: 1200 mm

Normative references

• Ministerial Decree 17 January 2018 – Technical Standards for Construction (NTC 2018)
• Eurocode 3 – Design of steel structures
• UNI 10806:1999 – Metallic guardrails: design criteria and requirements
• UNI 10809:1999 – Tests for resistance of metallic guardrails

Technical specifications

• Model name: Bridge
• Intended use: protection of pedestrian routes (road, urban, extra-urban)
• Resistance to horizontal load: 150 daN/m (1.5 kN/m)
• Grating panel: Svevia model, mesh 62×132 mm, material S235JR
• Panel frames: flat 25×4 mm
• Handrail: square tube 40×40×3 mm in S275JR
• Posts: rectangular tube 80×40×4 mm in S275JR with base plate 180×120×15 mm (4 holes Ø 14 mm)
• Distance between posts: 2014 mm
• Handrail height: 1200 mm
• Surface treatments: hot-dip galvanizing UNI EN ISO 1461; optional polyester coating on galvanizing in RAL colours
• Safety requirement: not penetrable by a sphere Ø 100 mm
