Steel grating

galvanised steelelectro-welded steelfor walkways

Description

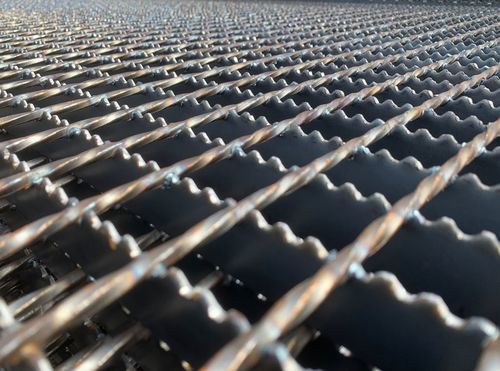

The serrated welded grating is a variant of welded metal grating in which the top of the bearing bars is serrated to create a higher‑traction surface. It provides anti‑slip properties to reduce the risk of falls and is suitable for workplaces with low‑friction or liquid‑contaminated floors. Serration is formed along the top face of the bearing bars, producing anti‑slip panels. Production is classified according to DIN 51130 with slip resistance rating from R10 to R13.

Production range

• Raw gratings size 6100 x 1000 mm
• Hot‑dip galvanized gratings size 6100 x 1000 mm
• Cut panels raw, width 1000 x 1000 mm
• Standard edged panels, raw or hot‑dip galvanized, size 1000 x 1000 mm
• Custom cut panels (to customer drawing), edged and hot‑dip galvanized

Quality and certifications
The product is manufactured in accordance with EN 1090‑1:2009 + A1:2011 and is supplied with a CE quality certificate.

Applications

• Industry: platforms and walkways for industrial applications
• Construction sector

Characteristics / technical specifications

• Type: welded grating with serrated bearing bars
• Anti‑slip function: serration on the top face of bearing bars
• Slip resistance: DIN 51130 classification R10 to R13
• Available sizes: gratings 6100 x 1000 mm; panels 1000 x 1000 mm; custom cut panels
• Available finishes: plain, edged, hot‑dip galvanized
• Compliance: EN 1090‑1:2009 + A1:2011 and CE marking
