LED track light SKIMrectangularpolymeraluminum
Add to favorites
Compare this product
Characteristics
- Light source
- LED
- Diffuser shape
- rectangular
- Material
- aluminum, polymer
- Market
- retail, for office
- Dimmable
- dimmable
- Other characteristics
- orientable, DALI
- Number of bulbs
- double
- Color
- black, white, silver-colored
- Color temperature
Max.: 4,000 K
Min.: 2,700 K
Description
Overview
Special features
Product details
Technical specifications

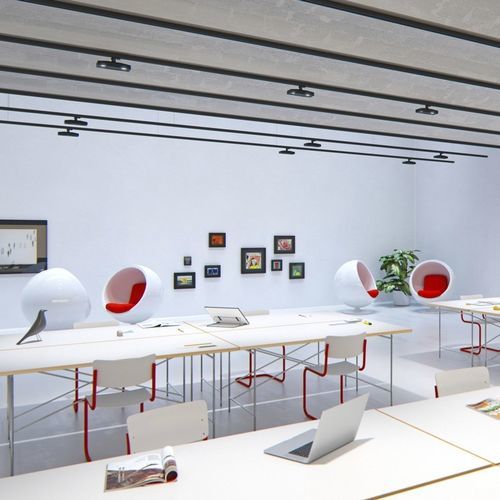

- Skim combines the flexibility of spotlights with the visual comfort of downlights in a compact, track-mounted design suitable for offices, retail projects and public buildings; luminaires can be repositioned and aligned to suit changing layouts.
Special features
- Suitable for office workstations: designed for effective glare control and high visual comfort (UGR values for guidance; assessment should consider actual luminaire layout).
- Oval flood freely rotatable: the oval flood lens can be rotated to align the beam optimally to objects and aisles.
- Small luminaire dimensions: compact, discreet luminaires that emphasise the light itself — advantageous in small rooms.
Product details
- ERCO lens system: optical polymer lens; light distributions available — Wide flood, Extra wide flood, Oval flood (Oval flood rotatable by 90°).
- ERCO LED-module: high-power LED available in warm white (2700K, 3000K) and neutral white (3500K, 4000K).
- Anti-glare cone: polymer cone available in White (RAL9002), Black or Silver; optical cut-off 30° for improved visual comfort.
- Housing: cast aluminium, powder-coated; series colours plus extensive custom colour options via ERCO Individual; luminaire rotatable 360° on the adapter.
- Control gear / dimming options: switchable; phase dimmable + On-board Dim (compatible with trailing-edge external dimmers and onboard rotary control); DALI dimmable; Casambi Bluetooth wireless control.
- Track adapters: ERCO 3-circuit adapter or ERCO DALI adapter for compatibility with track systems.
Technical specifications
- Product type: Track-mounted downlight (Skim)
- Light distributions: Wide flood, Extra wide flood, Oval flood (rotatable)
- LED power examples: 12.1 W – 18.7 W
- Luminous flux examples: approx. 1,163 lm – 2,213 lm (depending on configuration)
- Correlated colour temperatures (CCT): 2700K, 3000K, 3500K, 4000K
- Anti-glare cone optical cut-off: 30°
- Materials: lens — optical polymer; cone — polymer; housing — cast aluminium, powder-coated
- Finish options: White (RAL9002), Black, Silver; extensive custom colours via ERCO Individual
- Mounting/adapters: ERCO 3-circuit adapter or ERCO DALI adapter; luminaire rotatable 360° on adapter
- Dimming/control: switchable; phase dimmable + On-board Dim; DALI; Casambi Bluetooth
- Typical applications: offices, retail, public buildings — ambient lighting and flexible illumination of workplaces
