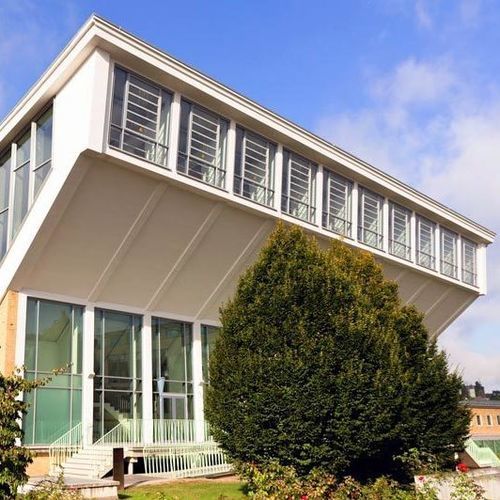

Louvre window TGL ISO

pivotpivoting with central axisPA

Product

• Series: TGL ISO — 24 BT 50 / 32 BT 60 / 44 BT 70

Design description

• Designed for vertical façade installation
• Frame and louvre blade profiles: aluminium with thermally insulated composite using PA6.6 profiles
• Filling: 2‑glazing or panel; framed glazing all around
• Oscillating louvre blades mounted on a horizontal pivot

Profile dimensions

• Overall frame depth: 50 mm
• Frame face width: 38 mm
• Vertical blade face width: 33 mm
• Horizontal blade joint face width: 66 mm

Type of opening

• Louvre windows consist of one or several superimposed blades that pivot on a horizontal axis as an oscillating wing. The lower portion opens outward below the pivot axis and the upper portion opens inward. Pivot axis is normally centered but can be offset up to 1/3–2/3 if required.
• Standard opening angle: 78°; adjustable 0–90° if required

Gaskets

• Vertical: brush seal
• Horizontal profile joint: brush seal + EPDM

Fittings

• Concealed fittings
• Made of corrosion‑resistant materials; galvanized

Surfaces / Finishes

• Profiles anodized; powder or wet paint coatings available per RAL, NCS, DB
• Special colours available on request

Available documentation (datasheets / inquiry / announcement texts)

• System cross sections and system data sheets for TGL ISO 24 BT 50 and TGL ISO 32 BT 60
• Data sheets: TGL ISO 24 BT 50, TGL ISO 32 BT 60, TGL ISO 44 BT 70
• Inquiry data sheets and announcement texts available for BT 50 / BT 60 / BT 70 variants

NSHEV – according to DIN EN 12101-2:2003
Aerodynamically effective opening area — as per calculation
Functional safety — Re 1000
Functioning under load — SL 0
Functioning in low temperatures, size and weight dependent — T (-20)
Stability under wind pressure — WL 3000
Resistance to heat — B 300-E

Window – according to DIN EN 14351-1
Air permeability (EN 12207) — Class 3 (Special version BT 60: Class 4)
Watertightness to driving rain (EN 12208) — Class 6A (Special version BT 60: 7A)
Resistance to wind pressure (EN 12210) — Class C2 (Special version BT 60: C5)
Sound insulation (EN ISO 717-1) — TGL ISO 32 BT 60: 39 dB
Thermal transmittance examples (EN ISO 10077-1)* — TGL ISO 24 BT 50: 1.70 W/m²K (with double glazing); TGL ISO 32 BT 60: 0.99 W/m²K (with triple glazing); TGL ISO 32 BT 60: 0.91 W/m²K (with vacuum panel)
*Values depend on size and glazing/filling of the louvre window

Technical specifications

• Product family: TGL ISO (louvre windows)
• Available structural variants: 24 BT 50, 32 BT 60, 44 BT 70
• Frame depth: 50 mm
• Face widths: frame 38 mm; vertical blade 33 mm; horizontal blade joint 66 mm
• Blade/frame material: aluminium profiles with thermally insulated composite of PA6.6
• Glazing / filling: 2‑glazing or panel; framed glazing all around
• Opening: horizontal pivot, oscillating wing; standard 78° (adjustable 0–90°); pivot axis centered or offset up to 1/3–2/3
• Gaskets: vertical brush seal; horizontal brush + EPDM
• Fittings: concealed, corrosion‑resistant, galvanized
• Surfaces: anodized or powder/wet paint coatings per RAL, NCS, DB; special colours on request
• Acoustic performance: up to 39 dB (TGL ISO 32 BT 60)
• Representative thermal transmittance examples: 1.70 W/m²K (24 BT 50 with double glazing); 0.99 W/m²K (32 BT 60 with triple glazing); 0.91 W/m²K (32 BT 60 with vacuum panel)
• Standards / classifications: NSHEV per DIN EN 12101-2; Window requirements per DIN EN 14351-1 (air permeability, watertightness, wind resistance classes as above)
