Aluminum ventilation grill AWW 320anodized aluminumextruded aluminumrectangular
Add to favorites
Compare this product
Characteristics
- Material
- aluminum, anodized aluminum, extruded aluminum
- Shape
- rectangular
- Interior/exterior use
- exterior, outdoor, for outdoor use
- Market
- commercial, home
- Applications
- for facade
- Color
- gray, silver-colored
- Other characteristics
- for air supply and exhaust, acoustic
- Width
Min.: 64 mm
(3 in)Max.: 2,500 mm
(98 in)- Length
Min.: 320 mm
(13 in)Max.: 550 mm
(22 in)
Description
Product
Profile dimensions
Surfaces
Possible sizes
Area of application
Documents available
Technical specifications

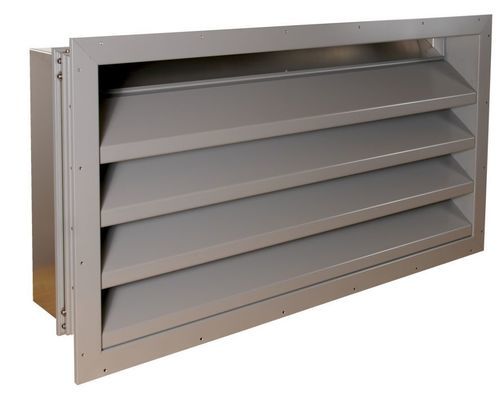

- AWW 320 – Sound-absorbing weather-proof louvres
- Acoustically effective weather protection grill for installation in vertical façades
- Frame and blades made of non-insulated, extruded aluminum profiles
- Aerodynamic aluminum blades circumferentially framed
- Integrated sound-proof package made of abrasion-proof mineral fibre
Profile dimensions
- Overall frame depth: 320 and 550 mm
- Face width of frame: 64 mm
Surfaces
- Profiles anodized; powder or wet paint coating possible according to RAL, NCS, DB; special colours available
Possible sizes
- Minimum frame width: 300 mm
- Maximum frame width: 2500 mm
- Blade height: fixed
Area of application
- Ventilation with noise level reduction
Documents available
- Data sheet for AWW products (PDF)
- System cross sections for AWW 320 (PDF) and DWG
Technical specifications
- Model: AWW 320
- Product type: Sound-absorbing weather-proof louvre / weather protection grill
- Material: Extruded aluminum profiles (non-insulated); mineral fibre sound-proof package
- Frame depths: 320 mm and 550 mm
- Frame face width: 64 mm
- Frame width range: 300 mm – 2500 mm
- Blade height: fixed
- Surface finishes: anodized; powder or wet paint coating according to RAL, NCS, DB; special colours available
