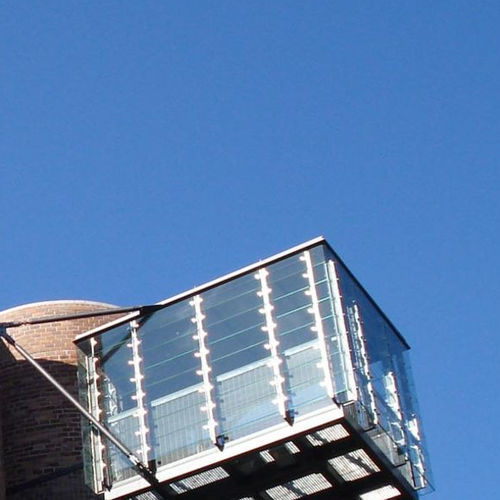

Sheet façade cladding GG BH

stainless steelverticalstructure

Product description
Particularly in double-shell claddings, this system offers high flexibility for construction and glass structure. It is a special design whose technical realisation will be accomplished according to customer requirements. For this purpose, technical consultation is recommended prior to the planning phase.

Documentation

• System cross sections GG BH (PDF, approx. 97.5 KB)
• Data sheet GG BH (PDF, approx. 30 kB)

Design

• Spot-held superimposed glass lamellas, fixed to on-site sub-construction by means of pivoting or fixed stainless steel panels

Glazing

• Patent glazing
• LSG (laminated safety glass) consisting of 2 × heat-soaked toughened safety glass or 2 × TVG (heat-strengthened glass) or combinations per structural calculation
• Total glass thickness: 6–16 mm

Fittings

• Fittings made of stainless steel (grade 1.4301)
• Operation by electric motor, optionally 230 V or 24 V
• E-drive protection category IP 65

Surface treatment

• Stainless steel grade 1.4301

Technical specifications

• Application: especially for double-shell (double-skin) claddings
• System type: special construction realised according to customer requirements
• Design detail: spot-held superimposed glass lamellas mounted to on-site sub-construction (pivoting or fixed stainless steel panels)
• Glazing options: patent glazing; laminated safety glass (LSG) 2 × heat-soaked toughened or 2 × TVG (heat-strengthened) depending on structural calculations
• Total glass thickness: 6–16 mm
• Fittings material: stainless steel (grade 1.4301)
• Drive: electric motor optionally 230 V or 24 V
• E-drive protection class: IP 65
• Surface material/finish: stainless steel grade 1.4301
• Available documents: System cross sections GG BH (PDF, approx. 97.5 KB) and Data sheet GG BH (PDF, approx. 30 kB)
