Facade sandwich panel ETNA
2 metal facesPolyisocyanurate PIR corehigh-resistance

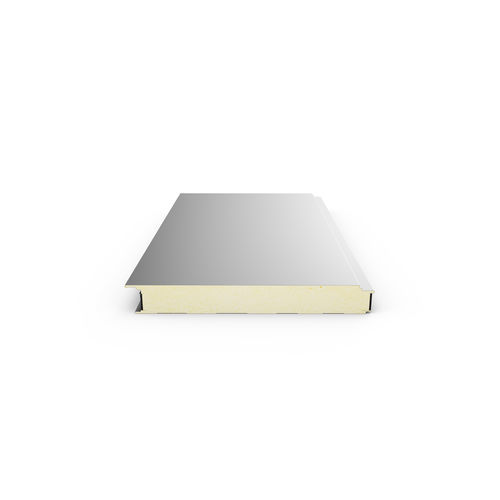

Facade sandwich panel - ETNA - EUROPERFIL, SA - 2 metal faces / Polyisocyanurate PIR core / high-resistance
Facade sandwich panel - ETNA - EUROPERFIL, SA - 2 metal faces / Polyisocyanurate PIR core / high-resistance
Facade sandwich panel - ETNA - EUROPERFIL, SA - 2 metal faces / Polyisocyanurate PIR core / high-resistance - image - 2
Facade sandwich panel - ETNA - EUROPERFIL, SA - 2 metal faces / Polyisocyanurate PIR core / high-resistance - image - 3
Facade sandwich panel - ETNA - EUROPERFIL, SA - 2 metal faces / Polyisocyanurate PIR core / high-resistance - image - 4
Facade sandwich panel - ETNA - EUROPERFIL, SA - 2 metal faces / Polyisocyanurate PIR core / high-resistance - image - 5
Add to favorites
Compare this product
Go to the EUROPERFIL, SA website for more information

Characteristics

Applications
for facade
Facing material
2 metal faces
Core material
Polyisocyanurate PIR core
Technical characteristics
high-resistance, lightweight, thermally-insulated
Fire class
Euroclass B-s1-d0
Width

600 mm, 900 mm, 1,000 mm
(24 in, 35 in, 39 in)

Length

Min.: 3,000 mm
(118 in)

Max.: 14,400 mm
(567 in)

Thickness

Min.: 40 mm
(1.57 in)

Max.: 80 mm
(3.15 in)

Description

Europerfil ETNA PIR B-s1,d0 architectural facade sandwich panel. CE marking (EN 14509). Tongue and groove sealed system with hidden fixture. Thicknesses from 40 to 100 mm. Fabricated in 600, 900 and 1000mm width; comprising exterior and interior shell in galvanised pre-lacquered steel with thicknesses of 0.75 ext./ 0.5 mm int. (according to XP P 34.301 and EN 10169) in standard Europerfil colours and coatings; rigid polyisocyanurate (PIR) foam core. Horizontal or vertical assembly. The panel is supplied with self-drilling fixture and reinforcement shell. Auxiliary complements: omega transversal seal system in steel or extruded aluminium shell, longitudinal and transversal EPDM seals, roller and gauges for EPDM seal assembly, start pins. This product is manufactured in: Steel , Polyisocianurat (PIR)
