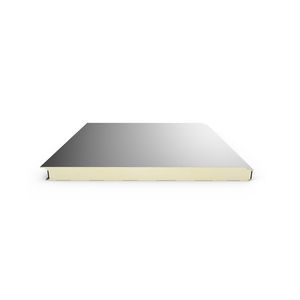

Facade sandwich panel RODAS
2 metal facesPolyisocyanurate PIR corehigh-resistance

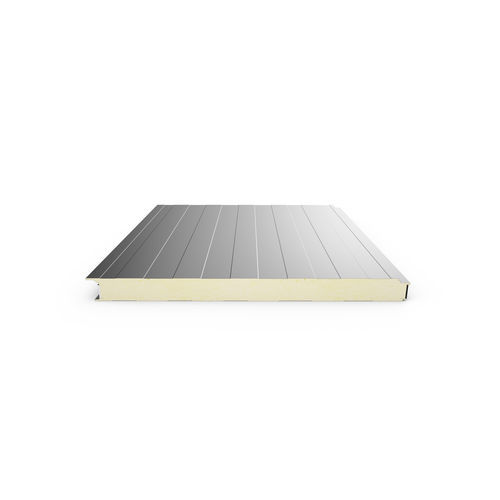

Facade sandwich panel - RODAS - EUROPERFIL, SA - 2 metal faces / Polyisocyanurate PIR core / high-resistance
Facade sandwich panel - RODAS - EUROPERFIL, SA - 2 metal faces / Polyisocyanurate PIR core / high-resistance
Facade sandwich panel - RODAS - EUROPERFIL, SA - 2 metal faces / Polyisocyanurate PIR core / high-resistance - image - 2
Facade sandwich panel - RODAS - EUROPERFIL, SA - 2 metal faces / Polyisocyanurate PIR core / high-resistance - image - 3
Facade sandwich panel - RODAS - EUROPERFIL, SA - 2 metal faces / Polyisocyanurate PIR core / high-resistance - image - 4
Add to favorites
Compare this product
Go to the EUROPERFIL, SA website for more information

Characteristics

Applications
for facade
Facing material
2 metal faces
Core material
Polyisocyanurate PIR core
Technical characteristics
high-resistance, lightweight, thermally-insulated
Fire class
Euroclass B-s1-d0
Width

Max.: 1,000 mm
(39 in)

Min.: 600 mm
(24 in)

Length

Max.: 14,400 mm
(567 in)

Min.: 3,000 mm
(118 in)

Thickness

Max.: 80 mm
(3.15 in)

Min.: 40 mm
(1.57 in)

Description

Europerfil RODAS PIR B-s1, d0 nerved facade sandwich panel. CE marking (EN 14509). Tongue and groove sealed system with hidden fixture. Thicknesses from 40 to 60 mm, fabricated in 600, 900 and 1000mm width; comprising exterior and interior shell in galvanised pre-lacquered steel with thicknesses of 0.5mm (or 0,6mm)/0.5mm (or 0,6mm) (EN 10169) in standard Europerfil colours and coatings; rigid polyisocyanurate (PIR) foam core. Horizontal or vertical assembly. The panel is supplied with self-drilling fixture and reinforcement shell. Auxiliary complements: omega transversal seal system in steel or extruded aluminium shell, longitudinal and transversal EPDM seals, roller and gauges for EPDM seal assembly, start pins. This product is manufactured in: Steel , Polyisocianurat (PIR)
