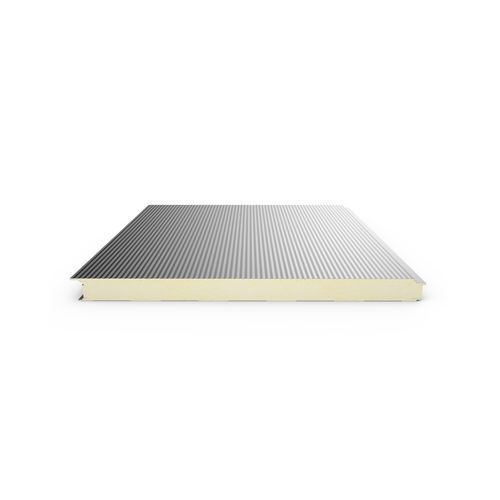

Facade sandwich panel NILHO
2 metal facesPolyisocyanurate PIR corehigh-resistance

Facade sandwich panel - NILHO - EUROPERFIL, SA - 2 metal faces / Polyisocyanurate PIR core / high-resistance
Facade sandwich panel - NILHO - EUROPERFIL, SA - 2 metal faces / Polyisocyanurate PIR core / high-resistance
Facade sandwich panel - NILHO - EUROPERFIL, SA - 2 metal faces / Polyisocyanurate PIR core / high-resistance - image - 2
Facade sandwich panel - NILHO - EUROPERFIL, SA - 2 metal faces / Polyisocyanurate PIR core / high-resistance - image - 3
Facade sandwich panel - NILHO - EUROPERFIL, SA - 2 metal faces / Polyisocyanurate PIR core / high-resistance - image - 4
Add to favorites
Compare this product
Go to the EUROPERFIL, SA website for more information

Characteristics

Applications
for facade
Facing material
2 metal faces
Core material
Polyisocyanurate PIR core
Technical characteristics
high-resistance, lightweight, thermally-insulated
Fire class
Euroclass B-s1-d0
Width

600 mm, 900 mm, 1,000 mm, 1,100 mm
(24 in, 35 in, 39 in, 43 in)

Length

Max.: 14,400 mm
(567 in)

Min.: 3,000 mm
(118 in)

Thickness

Max.: 80 mm
(3.15 in)

Min.: 40 mm
(1.57 in)

Description

Europerfil NILHO PIR B-s1, d0 micro nerved facade sandwich panel. CE marking (EN 14509). Tongue and groove sealed system with hidden fixture. Thicknesses from 40 to 80 mm, fabricated in 600, 900, 1000 and 1100 width; comprising exterior and interior shell in galvanised pre-lacquered steel with thicknesses of 0.75mm /0.5mm (EN 10169) in standard Europerfil colours and coatings; rigid polyisocyanurate (PIR) foam core. The panel is supplied with self-drilling fixture and reinforcement shell. Auxiliary complements: omega transversal seal system in steel or extruded aluminium shell, longitudinal and transversal EPDM seals, roller and gauges for EPDM seal assembly, start pins. This product is manufactured in: Steel , Polyisocianurat (PIR)
