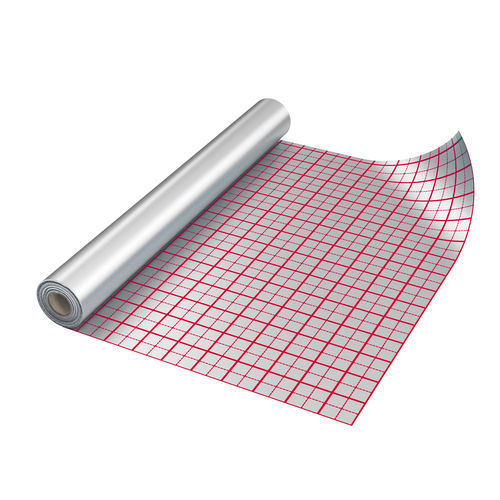

Two-layer reflective insulation foil. Made of laminated foil with metalized and printed upper layer. Recommended for use as thermal insulation below floor heating systems and floor panels as well as behind various heating elements. Effectively protects against penetration of vapour and reflects heat rays to ensure thermal comfort. Grid printing allows for faster and easier installation of the heating system.
Advantages:
Thermal insulation
Flexibility
Fast and easy installation
Vapour insulation
Application
Foil is designed for use as insulating layer in floors, especially with floor heating systems. Installed directly on styrofoam boards, foil protects against transferof vapour from the concrete slab. When the floor heating system is in use, product effectively reflects heat rays preventing potential heat loss. Foil is suitable for application as heat shield when fitted with heating elements or as vapour barrier when installed with floor panels.
Technical data
Mass : ca. 110 g/m²
Vapour-permeability : 0,6 g/m²/24h
Sd value : ca. 70 m
UV resistance : 2 months
Roll size : 1,0 m x 50 rm = 50 m²
Roll weight : ca. 5,5 kg
Pallet : 100 rolls
