Studded geotextile EUROVENT GEO GARDEN DUO

HDPEdrainagewater retention

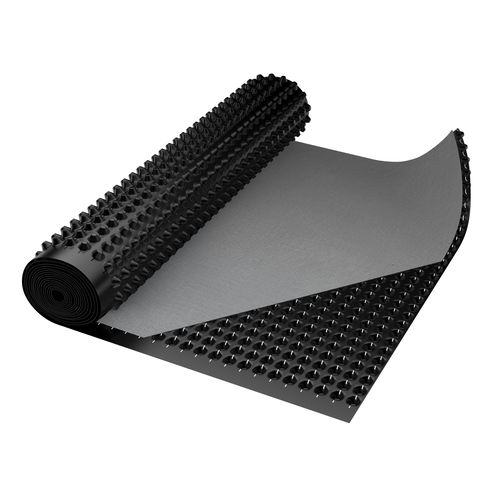

The Eurovent GARDEN DUO drainage and accumulationfoundation foil made of high-densitypolyethylene (HDPE) characterized by 20 mm dimples in parallel pattern with additionalperforation. Integrated with the filter fabric (PP), the dimples store water and the excesswater is drained off Zalety Drainage of green roofs Accumulates water up to 6 l/m2 Crush resistance GEO GARDEN DUO The Eurovent GARDEN DUO drainage and accumulationfoundation foil is designed for use aswaterproofing layer in horizontally arranged buildings, especially when constructing “gardenroofs” is designed for use as waterproofing layer in horizontally arranged buildings, especiallywhen constructing “garden roofs”.It forms a drainage surface that drains off excess waterduring periods of heavy rainfall. At the same time, high dimple serves as water retentionssupplying plants with the necessary amount of water. The integrated non-woven fabricensures filtration and prevents the extrusions from being filled with earth substrate. PALLET 5 rolls MATERIAL high-density polyethylene (HDPE), PP non-vowen ROLL SIZE 1,9 m x 20 mb TEMPERATURE RESISTANCE from -30 °C to +80 °C DIMPLE HEIGHT 20 mm COMPRESSION RESISTANCE ca. 180 kN/m²
