Flat roof skylight DRF DU6

for industrial buildingsfor homefor roofs

Overview

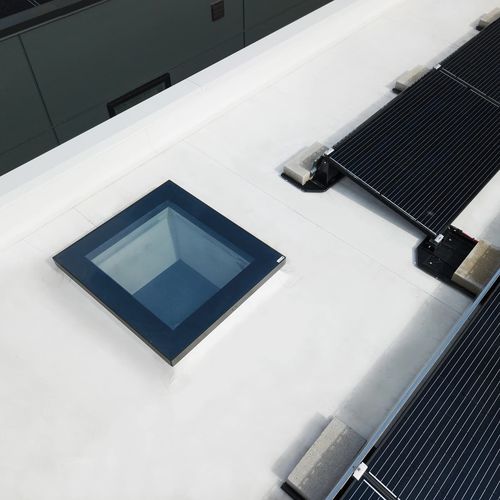

Designed for combined daylighting and safe roof access, the FAKRO DRF DU6 flat access roof light is intended for locations where vertical windows are impractical but roof egress is required. The unit integrates a DU6 double‑chamber glazing unit, a top‑hinged sash for wide opening, and a robust multi‑chamber uPVC frame with external cladding.

Key benefits

• Provides natural daylight to spaces beneath flat roofs while enabling safe and direct roof access.
• High thermal performance with a DU6 glazing unit (glazing U‑value 0.5 W/m²K) and construction designed for long‑term weather resistance.
• Top hinges allow wide sash opening to facilitate exit and entry to the roof.
• Gas springs hold the sash open; non‑slip profile covers improve footing during egress.
• Equipped with a ZBR lock to prevent unintended sash closure for added safety.

Applications and compatibility
The DRF DU6 is suitable for flat roofs with pitches from 2° to 15°. Installation angle can be increased by 3° using an XRD/A frame. For raised installations (green or gravel roofs), use the XRD/W installation base. Applicable in residential, commercial and light industrial buildings where controlled roof access and daylighting are required.

Construction and materials
The frame is manufactured from multi‑chamber uPVC profiles in white (RAL 9010) with insulation‑enhancing filling. External cladding is Black (RAL 9005). The construction is moisture‑resistant and designed for low maintenance.

Glazing and safety
Glazing is a DU6 double‑chamber unit with an internal P2A anti‑burglary pane. The glazing unit has a rated heat transfer coefficient of 0.5 W/m²K; the external pane is toughened with a lifetime hail resistance warranty. Air permeability, watertightness and wind‑load resistance meet high performance classes for safety and durability.

Operation and control
Manual operation is standard. Gas springs assist opening and closing and hold the sash in the open position. No electric or remote control, or solar supply, is included as standard for this model.

Additional features

• Sash opening: up to 80° for sizes 90×90 cm and 100×100 cm; up to 60° for sizes 90×120 cm and 120×120 cm.
• Non‑slip elements on profiles to improve safety during egress.
• Large glazed area maximises daylight penetration.

Technical specifications

• Model: DRF DU6
• Brand: FAKRO
• Commercial size (example shown): 90 × 90 cm
• External frame dimensions (example size 90×90): 1120 mm × 1120 mm
• Window frame clear opening (example): 817 mm × 817 mm
• Window sash clear opening (example): 776 mm × 776 mm
• Window reveal clear opening (example): 858 mm × 858 mm
• Glazing unit: DU6 double‑chamber glazing unit; glazing U‑value 0.5 W/m²K
• Overall thermal transmittance (Uw for selected size): 0.74 W/m²K
• Internal glazing: P2A class anti‑burglary glass
• Number of seals: 2
• Airtightness (air permeability): Class 4
• Wind load resistance: Class C5/B5
• Impact resistance: Class 5 (950 mm)
• Watertightness: E1200
• Acoustic insulation Rw: 38 dB
• Suitable roof pitch: 2°–15°
• Product weight (example size): 98 kg
• Package dimensions (example): width 1.21 m; length 1.22 m; height 0.28 m
• Frame material and colour: multi‑chamber uPVC white (RAL 9010); external cladding Black (RAL 9005)
• Operation: Manual; gas springs to assist movement and hold sash open
• Walk‑on window: No
