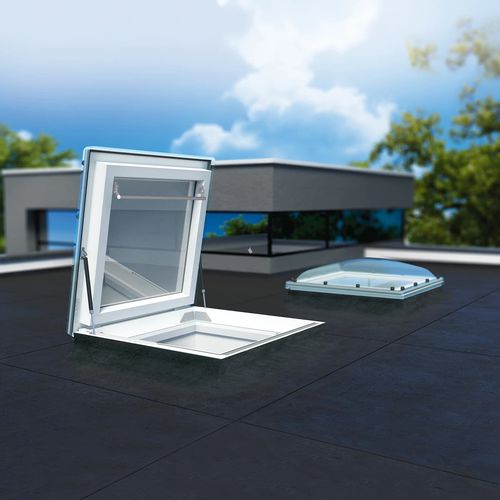

Flat roof skylight DRC-C P2

waterproofairtightdouble-glazed

Overview
The DRC-C P2 is a flat roof access roof light that integrates daylighting and safe roof access. Designed for situations where vertical windows are impractical, it features a transparent dome and a purpose-selected glazing unit to maximise light transmission while maintaining safety and thermal performance. Gas springs and non-slip profile covers ensure safe and ergonomic use during roof access.

Key features

• Thermal transmittance: Uw = 0.93 W/m²K.
• Transparent polycarbonate dome with protective coatings on both sides for enhanced durability and UV protection.
• Sash opening: up to 80° for smaller sizes, up to 60° for larger sizes.
• Gas springs assist opening and closing for safer operation.
• Suitable for roof pitches from 0° to 15°; compatible with a 15 cm XRD/W installation base for gravel or green roofs.

Design and usability
The unit is engineered as a flat access roof light combining wide access and daylight provision. A dedicated hinge system enables large sash opening angles to facilitate roof exit and entry. Optional locks (ZBR, ZBL/D) are available to reduce accidental closure in high wind or to restrict unauthorised opening.

Dome
The dome is manufactured from high-impact polycarbonate with protective coatings on both sides. Its transparent surface admits abundant natural light while providing UV protection and long-term resistance to external factors.

Glazing unit (P2)
The single-chamber P2 glazing unit incorporates inner P2A glass for basic forced-entry resistance and an outer toughened glass pane covered by a lifetime hail resistance warranty.

Frame
The frame is constructed from multi-chamber uPVC profiles in white (RAL 9010) filled with insulating material. It resists moisture and common cleaning agents, making it suitable for high-humidity interiors (bathrooms, laundries). The finish is low-maintenance with a light interior appearance for easy integration.

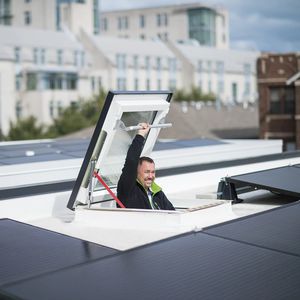

Operation and safety
Gas springs support safe opening and controlled closing of the sash to prevent sudden closure. Non-slip covers on access profiles improve footing when exiting onto the roof. Optional accessory locks (ZBR to reduce accidental closure; ZBL/D to prevent unauthorised opening) can be fitted.

Applications
Designed for flat roofs (0°–15°) in single-family dwellings, offices, industrial and public buildings. For special roof coverings such as gravel or green roofs, use the 15 cm XRD/W installation base to raise the unit above the roof surface for correct installation.

Characteristics / technical specifications

• Commercial size (W × H): 90×90 cm
• External frame width × height: 1120 mm × 1120 mm
• Window frame clear opening width × height: 817 mm × 817 mm
• Window sash clear opening width × height: 776 mm × 776 mm
• Window reveal clear opening width × height: 858 mm × 858 mm
• External frame material / colour: multi-chamber uPVC profile, PVC white (RAL 9010)
• Window material: multi-chamber uPVC profile
• Glazing unit: single-chamber P2 glazing with inner P2A glass and external toughened glass (lifetime hail resistance warranty)
• Number of seals: 2
• Thermal transmittance (Uw): 0.93 W/m²K
• Airtightness (air permeability): Class 4
• Acoustic insulation (Rw): 35 dB
• Watertightness: Compliant
• Walk-on window: No
• Control system: Manual (no solar power supply, no installed electric control, no remote control)
• Sash opening: up to 80° (smaller sizes) or up to 60° (larger sizes)
• Assistance: gas springs for safe opening/closing
• Roof pitch for installation: 0° – 15°
• Product weight: 81 kg
• Package dimensions (W × L × H): 1.21 m × 1.22 m × 0.41 m
