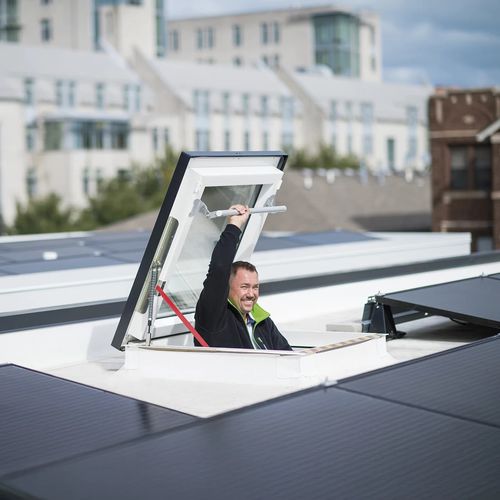

Rooftop access hatch DRG P2

roofsquareplastic

Short description

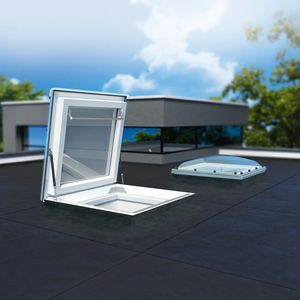

A combination of functionality, safety and elegance. Providing interior lighting and safe roof access in one solution. The DRG P2 access roof light uses a glass segment instead of a traditional dome to offer a larger glazed area and a modern appearance. The P2 glazing unit combines burglary-resistant properties with thermal insulation performance. Gas springs facilitate opening and non-slip covers on profiles improve safety and grip.

Product overview
Designed with functionality, comfortable access to flat roofs and maximum interior lighting in mind. The DRG P2 access roof light stands out with its elegant appearance and larger glazing area thanks to the glass segment. The frame is made of white multi-chamber PVC profiles (RAL 9010) filled with thermal insulation material, providing resistance to moisture and temperature fluctuations. The product is delivered complete and ready for installation and is suitable for roofs with pitches from 2° to 15°. Optional accessories (XRD/A frame to increase installation angle by 3° and XRD/W 15 cm base for green/gravel/thicker roofs) allow adaptation to special roof constructions.

Main features

• Glass segment providing additional lighting
• P2 anti-burglary glazing unit (laminated inner glass P2A + toughened outer glass)
• Sash opening: up to 60° or 80° depending on size (top-hinged)
• Gas springs for smooth opening and stable raised position
• Non-slip covers on profiles for safer roof access
• Suitable for installation on roofs with pitches from 2° to 15°
• Delivered complete and ready for installation

Materials & appearance

• Frame: multi-chamber uPVC profiles, white (RAL 9010)
• External cladding (visible external element / black spacer): Black RAL 9005
• Glazing: single-chamber P2 glazing unit (outer toughened glass + inner laminated P2A)

Use & functionality

• Designed as an access roof light for safe access to flat roofs while providing daylight
• Combines the functions of a window and a roof access hatch in one unit
• Gas-spring assisted sash ensures safe operation without risk of spontaneous closing

Caractéristiques / spécifications techniques

• Model: DRG P2
• Brand: FAKRO
• Commercial size (W × H): 90x90 cm (example for selected size)
• External frame width × height: 1120 mm × 1120 mm
• Window frame clear opening (W × H): 817 mm × 817 mm
• Window sash clear opening (W × H): 776 mm × 776 mm
• Window reveal clear opening (W × H): 858 mm × 858 mm
• External cladding (black spacer) colour: Black RAL 9005
• Window colour (interior): PVC white (RAL 9010)
• Window material: multi-chamber uPVC profile
• Glazing unit: P2 single-chamber (laminated inner P2A + toughened outer)
• Thermal transmittance Uw: 1 W/m²K (for selected size with original installation accessories)
• Number of seals: 2
• Airtightness (air permeability) class: Class 4
• Wind load resistance: Class C5/B5
• Impact resistance: Class 5 (950 mm)
• Watertightness: E1200
• Walk-on window (Walk On): No
• Sash opening angle: up to 80° (for 90×90 and 100×100 cm) or 60° (for 90×120 and 120×120 cm) depending on size
• Control: Manual (gas springs assist opening/closing)
• Solar power supply: No (manual operation)
• Suitable roof pitch for installation: 2° – 15°
• Optional accessories: XRD/A frame (increases installation angle by 3°), XRD/W 15 cm base (for green, gravel or thicker insulation roofs)
• Product weight (90×90 example): 89 kg
• Package dimensions (approx.): width 1.21 m × length 1.22 m × height 0.28 m
