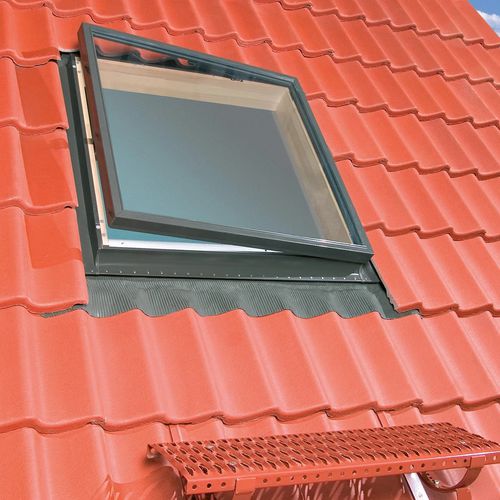

Glass roof window WLI

pinelaminated woodsash

Overview

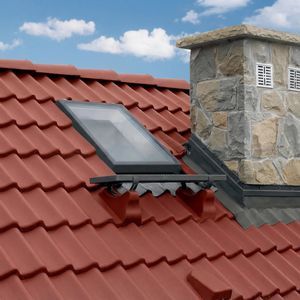

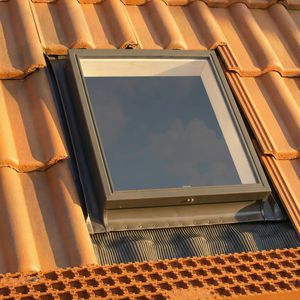

This access roof light is designed for sloping roofs of unheated spaces such as attics, garages and unused lofts. The large glazed area provides natural interior lighting while the side-opening sash enables roof access and controlled ventilation. The frame is laminated pinewood with a toughened glazing unit for improved durability and safety. A universal flashing adaptable to flat and corrugated coverings is included.

Key features

• Universal flashing suitable for flat and corrugated roof coverings.
• Opening side can be changed during installation with horizontal adjustment to match tile layout.
• Large glazed area for effective natural lighting.
• Sash has three stop positions for ventilation without full opening.

Detailed description

• Access and ventilation: the sash offers three stop positions allowing ventilation without fully opening; opening is intuitive and requires little effort.
• Construction and installation: laminated pinewood frame is vacuum-impregnated (protection against fungi, moisture and biological agents) and structural elements are bonded with waterproof adhesive. The universal flashing adapts to most roofing types and allows horizontal adjustment to align with roof tiles.
• Glazing: glazing unit 484 with toughened glass on both inner and outer faces for improved impact, temperature and UV resistance while transmitting natural light.
• Finish: external aluminium elements are powder coated (RAL 7022 dark grey) for a neutral appearance that fits many roof colours.

Included / Packaging notes

• Set includes access roof light with glazing unit and universal flashing suitable for flat and corrugated roofs.
• Flashing features a flexible lower finish that conforms to the roof surface to reduce leak risk.

Technical specifications

• Model name: WLI
• Intended use: Access roof light for sloping roofs (suitable for unheated rooms such as attics, garages, unused lofts)
• Commercial size (W x H): 54 x 83 cm
• Installation size (W x H): 54 x 83 cm
• Sash opening direction: side-opening (sash opens to side; sash can be set in several positions for ventilation)
• Sash construction / glazing: Glazing unit 484; toughened glass inside and out
• Frame material: laminated pinewood, vacuum-impregnated (protected against moisture and biological agents)
• Cladding / external finish: aluminium elements, powder coated (RAL 7022)
• Product code: 56198
• Product weight: 20.5 kg
• Package width: 0.8 m
• Package length: 1.09 m
• Package height: 0.18 m
• Number of products per pallet: 6 pcs
