Roof access hatch WGT

rooftoprectangularglass

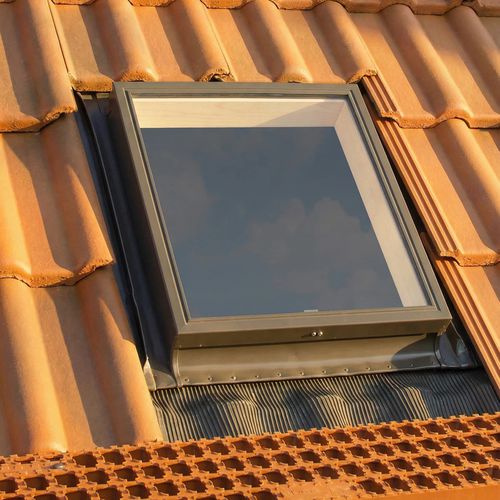

Overview A roof access hatch designed to provide safe and convenient access from unheated spaces such as attics, garages or utility rooms. The hatch also delivers daylight and controlled ventilation to improve attic usability. The flap opens upward with multiple tilt positions for adjustable airflow and intuitive operation, making it suitable for maintenance, inspections and minor repairs.

Key features

• Upward-opening flap with multi-position tilt for ventilation
• Single toughened glass (single glass 4) for improved impact and hail resistance
• Factory-integrated aluminium flashing for profiled roofs up to 45 mm
• Simple installation process
• Provides safe roof access for maintenance and inspections
• Intended for unheated rooms (attics, garages, utility buildings)
• Materials resistant to rain, snow, frost and UV
• Aluminium sash with corrosion resistance
• Internal seal to limit moisture and wind ingress
• Vacuum-impregnated pine frame for extended service life

Details

• Sash: aluminium profile in grey-brown (RAL 7022) with peripheral seal for improved airtightness
• Frame: solid pinewood, vacuum impregnated to protect against moisture, fungi and insects
• Glass: single toughened glass (single glass 4) — enhanced safety and resistance to hail and mechanical damage
• Flashing: factory-integrated universal aluminium flashing with flexible apron; suitable for profiled roofing up to 45 mm; apron material: aluminium-clad plastic; colour matched to common roof tiles
• Opening and control: upward opening; tilt in several positions for ventilation; no additional opening assistance included
• Functionality: provides natural daylight and ventilation; flap design enables intuitive operation

Technical specifications

• Roof access hatch size (W x H): 46x55 cm
• Commercial size (W x H): 46x55 cm
• Installation size (W x H): 46x55 cm
• Flashing apron width: 160 mm
• Flashing type: profiled up to 45 mm (Z)
• Apron material: aluminium-clad plastic
• Sash construction: single glass 4
• Glazing unit: single toughened glass
• Sash opening direction: Up
• Opening assistance: No
• Air permeability class: Class 1
• Resistance to wind load: B2
• Resistance to snow load: 4
• Watertightness – unshielded: 5A A
• Product code: 56182
• Number of products per pallet: 11 pcs
• Product weight: 7.6 kg
• Package width: 0.72 m
• Package length: 1.02 m
• Package height: 0.12 m
