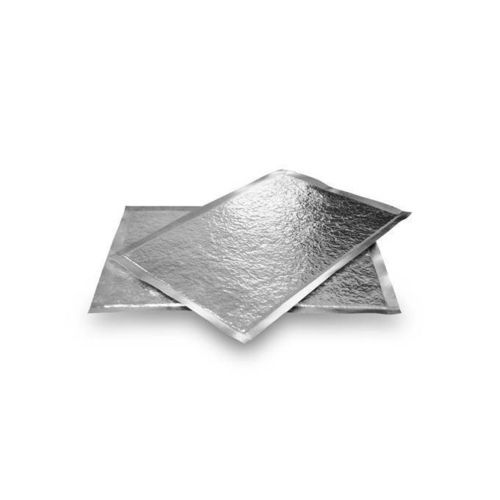

Thermal insulation YINLIN ULTRATHIN-VIP

panelwith aluminum facinglightweight

Product Overview
Yinlin Ultrathin-VIP is a vacuum insulation panel (VIP) engineered to provide high thermal resistance within minimal thickness for thermal management of new energy lithium battery packs. Compared with conventional insulation materials, it delivers multiple times the thermal resistance while occupying very little space, helping to improve battery power retention at low temperatures.

Advantages

• Improves low-temperature performance of power batteries by reducing heat loss
• Very thin construction with small volume and low weight
• Thermal resistance approximately 8–10 times that of traditional materials
• Porous core reduces solid conduction
• High vacuum inside the panel minimizes convective heat transfer
• Composite reflective films reduce radiative heat transfer

Specification (table)
Initial thermal conductivity at room temperature: λ ≤ 3 W/(m·K)
Thickness and size range: H: 1–5 mm; 100×100–600×1000 mm
After 1000 h at 85℃/85% RH or at normal temperature: λ ≤ 3 W/(m·K)
Copper acetate salt spray 240 h test: Δλ < 2 mW/(m·K)
Electrical withstand: 3800 VDC; leakage current < 1 mA
Temperature application range: -40℃ to 90℃
Insulation: 500 MΩ at 5000 V
Density range: 400–550 kg/m³

Technical specifications

• Model name: Yinlin Ultrathin-VIP
• Initial thermal conductivity (room temperature): λ ≤ 3 W/(m·K)
• Thickness: 1–5 mm
• Available sizes: 100×100 mm up to 600×1000 mm
• Environmental stability: retains λ ≤ 3 W/(m·K) after 1000 h at 85℃/85% RH or at normal temperature
• Copper acetate salt spray (240 h) performance: Δλ < 2 mW/(m·K)
• Electrical withstand: 3800 VDC, leakage current < 1 mA
• Operating temperature range: -40℃ to 90℃
• Insulation resistance: approx. 500 MΩ at 5000 V
• Density: 400–550 kg/m³
