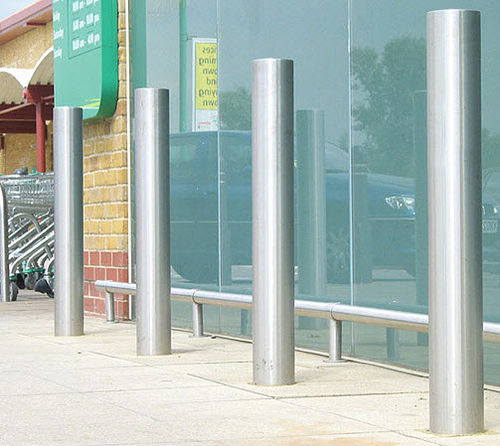

Security bollard ZENITH®

galvanized steelstainless steelpowder-coated steel

MATERIALS & FINISHES: Steel - galvanised finish Steel - polyester powder coated finish Stainless steel - G304 bright or satin polished Stainless steel - G316 bright or satin polished OPTIONS: Base plated Removable - standard or F1 socket Security version Reflective tape - refer to accessories for colour INSTALLATION: Root fixed Foundation depth is usually the same as the root depth of the bollard Minimum recommended foundation is the root diameter plus 200mm Concrete mix to 25 newtons Base plate Base plates have 4no fixing holes to take M16 bolts (maximum). Fixings not supplied. Removable Foundation depth 320mm Minimum recommended foundation 450mm sq Dig an additional drainage hole 80mm (d) x 150mm (sq) and fill with pea shingle (directly below socket) Concrete mix to 25 newtons
