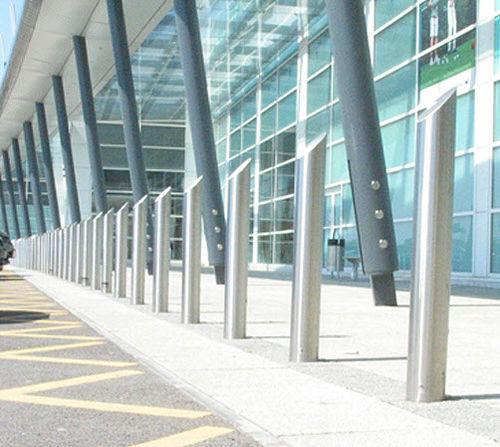

The Zenith sloped bollard is a stainless steel bollard with a bright or satin polished finish. The popular Zenith bollard is simple in design, low in maintenance, hard wearing and 100% recyclable. Zenith sloped bollards are available in heights of either 900 or 1000mm. The latter can help the visually impaired and assist with the requirements of the DDA and BS 8300. Base plated, removable and security versions are available. The Zenith sloped removable bollard can be housed in either a hinged steel socket (to be secured with a padlock) or the F1 socket, which provides a flat, flush finish when not in use. The Zenith sloped bollard is also available in steel with a galvanised or powder coated finish.
MATERIALS & FINISHES:
Steel - galvanised finish
Steel - polyester powder coated finish
Stainless steel - G304 bright or satin polished
Stainless steel - G316 bright or satin polished
OPTIONS:
Base plated
Removable - standard or F1 socket
Security version
Etched graphics
Reflective tape - refer to accessories for colour
INSTALLATION:
Root fixed
Foundation depth is usually the same as the root depth of the bollard.
Minimum recommended foundation is the root diameter plus 200mm.
Concrete mix to 25 newtons
Base Plated
Base plates have 4no fixing holes to take M16 bolts (maximum). Fixings not supplied.
Removable
Foundation depth 320mm
Minimum recommended foundation 450mm sq
Dig an additional drainage hole 80mm (d) x 150mm (sq) and fill with pea shingle (directly below socket)
Concrete mix to 25 newtons
Security
Please note that this product will not perform as an anti ram raid bollard until concrete is fully set and must be protected until this time.
